Pro-werks Aluminum Universal Access Door Kit, Includes Mounting Hardware
Access Door Kits
When Speed Counts You Can Count on Pro-werks
Building a vehicle with speed in mind means so much more than simply adding power and saving weight. Speed of access is critical — whether adding fuel, getting in to make a quick adjustment.
When there is business behind a side panel or deck lid, the Pro-werks surface mount 6061-T6 aluminum access door kit can provide a means to get it done quickly. The finished installation is smooth, the top surface of door and latch are flush with the top of the panel - lock mechanism is below the door panel.
The unique aeronautical styled door is super cool and adds a nice touch of class to any custom fabricated build — including yours!
Available in two popular door sizes: 5" x 5" or 8" x 12". These options open up access for many possibilities.
Backed by The Chassis Shop's Satisfaction Guarantee.
brProvides Easy Access To:
- Fluid filling
- Bottle knobs
- Electrical systems
- Performance adjustments
- Visual inspection

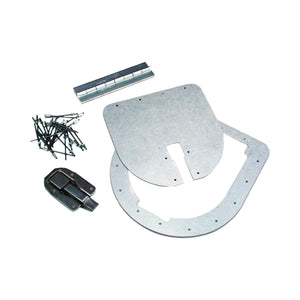

These complete, easy-to-install kits include: Aluminum door, Stop flange, Aluminum hinge, Flush mount access door release, and Pop rivet style mounting hardware.
All you need to install is a few tools and a little determination.
Part Number and Specifications

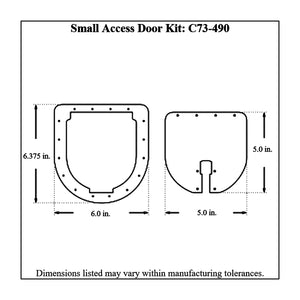

Part # C73-490 Small Access Door Kit
- 5 in. Wide
- 5 in. Long
- 1/16 in. Thick
Part # C73-492 Large Access Door Kit
- 8 in. Wide
- 12 in. Long
- 1/16 in. Thick
Pro-werks has got you covered!
Complete Your Build
Access door kits work hand-in-hand with these related components from The Chassis Shop:
- Bottle Knobs — Pro-werks billet aluminum CO2 and nitrous bottle knobs, easily accessed through your new door
- Fill Caps & Bungs — Pro-werks billet aluminum fill caps for fuel and dry sump tanks accessed through body panels
- Weld Plumbing Bungs — NPT and AN weld bungs for the fluid systems your access door provides entry to
- Bar, Bottle & Universal Mounts — bottle and tank mounting hardware that works to hold bottles and accessories behind your access door
