Aluminum Access Door Kits, Latches, and Hinges
Lightweight, aeronautical-style access door kits. Complete kits — everything included for a fast, clean install.
Race Car Aluminum Access Door Kits — Surface Mount, Flush Finish, Aeronautical Style
Complete Access Door Kits
When there’s business behind a side panel or deck lid, the Pro-werks surface mount 6061-T6 aluminum access door kit gets it done quickly and cleanly. The finished installation is smooth — the top surface of the door and latch sit flush with the panel surface, with the lock mechanism recessed below. The unique aeronautical-styled door adds a touch of class to any custom fabricated build. Easy to install and available in two sizes:
- Small — 5" x 5" — Pro-werks Aluminum Access Door Kit — includes aluminum door, stop flange, aluminum hinge, flush mount release & pop rivet hardware
- Large — 8" x 12" — Pro-werks Aluminum Access Door Kit — includes aluminum door, stop flange, aluminum hinge, flush mount release & pop rivet hardware

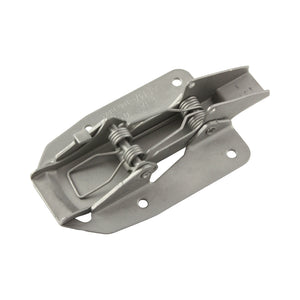

Aircraft Grade Access Door Release — Flush Mount, Spring-Loaded Latch

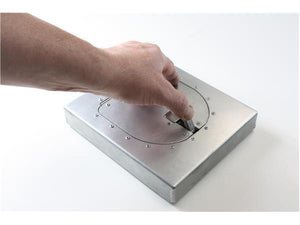

The Pro-werks stainless steel aircraft grade door release (part # C73-480) is the same high-quality latch included in every Pro-werks Access Door Kit — also available separately for custom builds. Spring-loaded with a positive lock, this unique latch releases with one finger and resets just as easily. No special tools required. Features a 1/16" offset so the latch face sits perfectly flush with the panel surface when installed.
- Stainless Steel Construction — Pro-werks Aircraft Grade Access Door Release — lightweight, spring-loaded, positive-lock latch for removable access panels

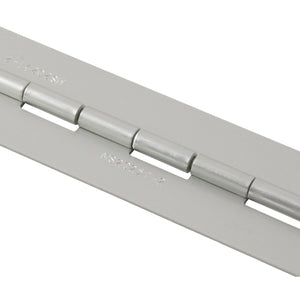

Lightweight Aluminum Access Door Hinge — Military Spec, Cut to Length
The Pro-werks aluminum piano-style hinge (part # C73-485) is the same aircraft grade hinge included in all Access Door Kits — and available separately for custom fabrication of hinged panels, deck lids, and access doors. Constructed of lightweight anodized aluminum with a plated steel pivot pin. Mounting flanges can be drilled to your desired hole spacing for rivets or screws.
- 1/16" Thick × 1-1/16" Wide × 12" Long — Pro-Werks Lightweight Aluminum Access Door Hinge — cut to length, military spec, anodized aluminum with plated steel pivot pin
Proudly Made in the USA.
Pro Tips
Selecting the correct size Access Door Kit:
First determine the space available on your body panel to mount the door, then consider the size of the opening required to access what's important behind the panel.
The 5" × 5" door kit fits well in tight spaces and the 8" × 12" door kit is ideal when a larger opening is needed.
Uses and Applications
Access Door Kits provides easy access to:
- Fluid filling and Fuel Cells
- Bottle knobs and Nitrous/CO2 systems
- Electrical systems and Data capture
- Performance adjustments
- Visual inspection points
Complete Your Build
Access door kits work hand-in-hand with these related components:
- Bottle Knobs — Pro-werks billet aluminum CO2 and nitrous bottle knobs, easily accessed through your new door
- Fill Caps & Bungs — Pro-werks billet aluminum fill caps for fuel and dry sump tanks accessed through body panels
- Weld Plumbing Bungs — NPT and AN weld bungs for the fluid systems your access door provides entry to
- Bar, Bottle & Universal Mounts — bottle and tank mounting hardware that works to hold bottles and accessories behind your access door
