Lateral Limiter Kits, Wheel Spacers, Housing Ends, Saddle Mounts and Driveline Components
Driveline Accessories — Lateral Limiters, Wheel Spacers, Housing Ends & Saddle Mounts
Engine, transmission, and driveline — the complete powertrain makeup of your high-performance vehicle can benefit from these proven Pro-Werks components, crafted with pride by skilled American workers. These are world-class solutions born from decades of working alongside the best car builders in motorsports. How fast do you want to go?
Lateral Limiter Kits — Universal & Powerglide-to-Ford 9"
Lateral limiters control engine and transmission movement during hard acceleration or braking — recommended when using motor plates to mount the transmission and engine. Pro-Werks offers two complete kit configurations and the individual brackets sold separately for custom applications. Final fitting and welding required.
- C42-427 Universal Lateral Limiter Kit — Fits Any Location — Pro-Werks Universal Lateral Limiter Kit — includes 4130 chromoly tubing, rod ends, hardware & weld-on mild steel tabs
- C42-429 Powerglide-to-Ford 9" Lateral Limiter Kit — Bolt-On Chromoly Brackets —Pro-Werks Powerglide-to-Ford 9" Lateral Limiter Kit — bolts to Powerglide shorty tail shaft & Ford 9" OEM pinion retainer, yellow zinc plated chromoly brackets
Lateral Limiter Brackets — Sold Separately for Custom Builds
The same yellow zinc plated chromoly brackets from the C42-429 kit, available individually for custom lateral limiter installations, Made in USA
- C42-430 — Bolts to Powerglide Shorty Tail Shaft Fasteners — Pro-Werks Lateral Limiter Bracket — yellow zinc plated 4130 chromoly
- C42-431 — Bolts to Ford 9" OEM Pinion Bearing Retainer Fasteners — Pro-Werks Lateral Limiter Bracket — yellow zinc plated 4130 chromoly
Billet Aluminum Wheel Spacers — CNC-Machined, Silver Anodized, Sold in Pairs
Pro-Werks billet aluminum wheel spacers are precision CNC-machined for proper fit and parallelism — a more accurate production method than competitor die-cut, laser, or water jet alternatives. Available in multiple bolt patterns and in 1/4" or 1/2" thickness. Silver anodized for durability and corrosion resistance. Steel stud bushings available separately to reduce .702" holes to 1/2" for applications using 1/2" diameter wheel studs. Made in USA.
- C44-001 / C44-003 — 0.702" Holes, 3-1/16" Center Hole — 1/4" or 1/2" Thick — Pro-Werks Billet Aluminum Wheel Spacers, Pair
- C44-005 / C44-007 — 0.702" Holes, 3-1/2" Center Hole — 1/4" or 1/2" Thick — Pro-Werks Billet Aluminum Wheel Spacers, Pair
- C44-013 / C44-015 — 0.702" Holes, 4-1/4" Center Hole — 1/4" or 1/2" Thick — Pro-Werks Billet Aluminum Wheel Spacers, Pair
- C44-017 / C44-019 — 0.531" Holes, 4-1/4" Center Hole — 1/4" or 1/2" Thick — Pro-Werks Billet Aluminum Wheel Spacers, Pair
- C44-021 / C44-023 — 0.578" Holes, 5-1/8" Center Hole — 1/4" or 1/2" Thick — Pro-Werks Billet Aluminum Wheel Spacers, Pair

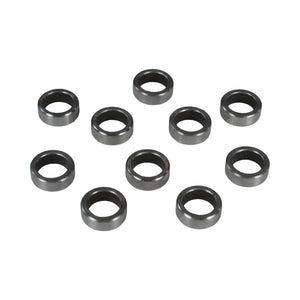

- Steel Stud Bushings — Reduces .702" Holes to 1/2", Pack of 10 — Pro-Werks Steel Stud Bushings — available in two lengths, for 1/2" diameter wheel stud applications

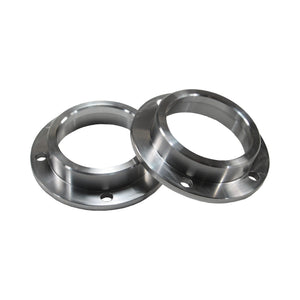

Steel Housing Ends — 1026 DOM Steel, CNC-Machined, Sold in Pairs
Pro-Werks steel housing ends permit the use of larger outer bearings when narrowing your rear end housing. Precision CNC-machined from weldable 1026 DOM steel, available in several configurations. Sold in pairs.
- 1026 DOM Steel, Multiple Configurations, Sold in Pairs — Pro-Werks Steel Housing Ends — permits larger outer bearings when narrowing rear end housing, Made in USA

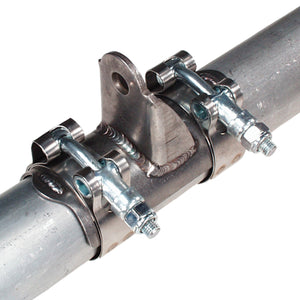

4130N Chromoly Floating Saddle Mounts — TIG Welded, 6 Sizes, 1" to 1-5/8" Tube
Pro-Werks floating saddle mounts are TIG welded from 4130N chromoly, black oxide conversion finished, and feature a safety nub on each side to retain the band clamp. The chromoly tab is 1/8" thick. Common applications include motor plates, add-on brackets, and radiator mounting. Two clamps recommended for most applications. Each saddle mount is matched to a specific stainless T-bolt band clamp.
- 1" Floating Saddle Mount — Uses C73-303 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
- 1-1/8" Floating Saddle Mount — Uses C73-304 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
- 1-1/4" Floating Saddle Mount — Uses C73-304 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
- 1-3/8" Floating Saddle Mount — Uses C73-306 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
- 1-1/2" Floating Saddle Mount — Uses C73-307 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
- 1-5/8" Floating Saddle Mount — Uses C73-307 Band Clamp — Pro-Werks 4130N Chromoly Floating Saddle Mount
Stainless T-Bolt Band Clamps — Positive Gripping, Matched to Saddle Mounts
Better than a screw clamp — positive gripping T-bolt style stainless steel band clamps are strong and sized to match each Pro-Werks floating saddle mount. Popular uses include floating saddle mounts, add-on brackets, and hose connections. Two clamps recommended for most applications.
- C73-303 — 1" to 1-3/16" Clamp Range — Fits C73-321 Saddle Mount — Pro-Werks Stainless T-Bolt Band Clamp
- C73-304 — 1-1/4" to 1-7/16" Clamp Range — Fits C73-322 & C73-323 Saddle Mounts — Pro-Werks Stainless T-Bolt Band Clamp
- C73-306 — 1-7/16" to 1-5/8" Clamp Range — Fits C73-324 Saddle Mount — Pro-Werks Stainless T-Bolt Band Clamp
- C73-307 — 1-1/2" to 1-7/8" Clamp Range — Fits C73-325 & C73-326 Saddle Mounts — Pro-Werks Stainless T-Bolt Band Clamp
Complete Your Driveline & Chassis Build
Driveline accessories work hand-in-hand with these related components from The Chassis Shop:
- Rod Ends — FK Bearing and Aurora heim joints used throughout driveline linkage assemblies
- Weld Tabs & Brackets — mild steel and chromoly chassis tabs for creating attachment points
- Tubing & Custom Bends — 4130N chromoly tubing used in lateral limiter kits and driveline chassis structures
- Specialty Nuts & Washers — fasteners, jam nuts, and AN hardware for final assembly
Note: Welding should always be performed by a qualified welder.
Proudly Made in the USA.
