Front Canard Aluminum Wings, Front Aluminum Wings and Rear Aluminum Wings
Front & Rear Aluminum Race Car Wings — Downforce, Stability & the Aero Advantage
Get the downforce and stability you need with Pro-Werks premium aluminum wings and canards. Our aero components are used by race winners around the world in many forms of motorsport. Quality comes from great materials and the attention to detail practiced by our skilled American metalcrafters — time-tested construction, wind tunnel proven NACA profiles, and the little touches like replaceable tip plates make a real difference. Since we make our wings and canards right here in Michigan, we can help with most custom applications. Contact us if you have a special request!
Front Canard Wings — CNC Billet Aluminum Ribs, 10" Chord, NACA Profile

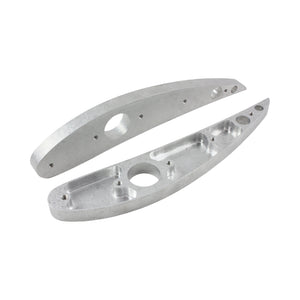

Pro-Werks front canard and one-piece wings are built with CNC machined billet aluminum ribs based on wind tunnel proven NACA wing profiles. Aircraft aluminum skin is 0.032" thick. Tip plates are removable, interchangeable, and designed for equal performance across profiles. Custom built wings available as a special order. Ribs are not available separately.
- Front Canard Aluminum Wings — 10" Chord, 1" OD Aluminum Mounting Tube, 0.032" Aircraft Skin, Outer Tips Only Version Available — Pro-Werks Front Canard Aluminum Wings — set includes (2) canards, tip plates & screws; outer tips version has 1-1/2" inside edge overhang, trimmable to match body contour
- Front One-Piece Aluminum Wing — 10" Chord, Internal Reinforcement Tubes, 1/4" Mount Tabs — Pro-Werks Front One-Piece Aluminum Wing — 3/8" front & 5/16" rear mount holes, 3-1/2" spacing, includes interchangeable tip plates; custom width & tab spacing available
Rear Aluminum Wings — CNC Billet Ribs, 15" Chord, NACA Profile
Pro-Werks rear wings are built with CNC machined billet aluminum ribs based on wind tunnel proven NACA wing profiles with a 15" chord length. Internal aluminum reinforcement tubes provide additional strength. Aircraft aluminum skin is 0.032" thick. Tip plates are removable and interchangeable. Custom built wings available as a special order.
- Rear Aluminum Wing — 15" Chord, 3/16" Mount Tabs, 3/8" Front & 5/16" Rear Holes, 5-7/8" Spacing — Pro-Werks Rear Aluminum Wing — includes interchangeable tip plates
- Rear Wing Mounting Instructions (PDF)
“I chose the Pro-Werks wing for a number of reasons: infinite adjustability, high-quality construction and hard data on angle of attack versus pounds of downforce at known speeds. From day one the jet truck was extremely stable. It had no ‘lifting’ of the rear end which is so common with jet trucks. It’s no BS…it works!” — Dave Modder, Owner/Driver, The Dragon’s Fyre Jet Truck
Replacement Tip Plates — Front & Rear, Multiple Profiles, Sold in Sets of Two
Tip plates are removable and interchangeable — replace a damaged plate or change the look with a different profile. Multiple styles available, all designed for equal performance. Mounting fasteners included.

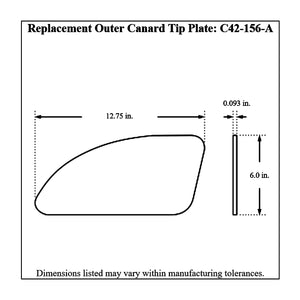

- Front Canard Wing Tip Plates — Set of 2, Includes (10) 1/2" 10-24 Button Head Cap Screws — Pro-Werks Front Canard Wing Aluminum Tip Plates — multiple profiles available

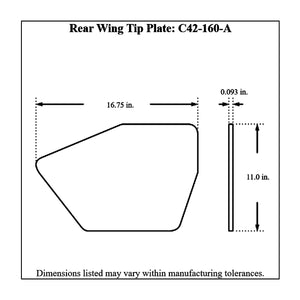

- Rear Wing Tip Plates — Set of 2, Includes (16) 1/2" 10-24 Button Head Cap Screws — Pro-Werks Rear Wing Aluminum Tip Plates — multiple profiles available
Wing Strut Kits & Adjusters — Complete Hardware for Wing Mounting
Complete wing mounting hardware from Pro-Werks — chromoly strut kits and aluminum adjuster links for precise angle-of-attack tuning. Final fitting and welding required on strut kits. Note: these kits are sized for comp class cars and do not meet SFI specifications required for some applications.
- Wing Strut Adjuster Kit — 7-3/4" Aluminum Adjuster Links, LH 5/16" Rod Ends, RH Threaded Slot Clevis (3/16" Slot, 5/16" Hole) — Pro-Werks Wing Strut Adjuster — for infinite angle-of-attack adjustment
- Chromoly Wing Strut Kit, 4130N, Unwelded — Dragster Style (44" Main Supports) or Altered Style (24" Main Supports) — Pro-Werks Chromoly Wing Strut Kit, 4130N — includes 4130 chromoly tubing, chromoly mount tabs, wing adjuster package & hardware; final fitting & welding required
Complete Your Aero Build
Wings and canards pair perfectly with these related components from The Chassis Shop:
- Tubing & Custom Bends — 4130 chromoly tubing for wing struts and chassis mounting structures
- Weld Tabs & Brackets — chassis tabs and brackets for wing mounting points
- Bar, Bottle & Universal Mounts — universal mounting hardware for wing and aero component attachment
- Windscreens & Body Components — Lexan windscreens, NACA ducts, and dragster noses
Note: Welding should always be performed by a qualified welder.
Proudly Made in the USA.
