4130 Chromoly Tubing, Custom Bends & Plate — We Provide the Good Stuff, Priced Right
The Chassis Shop has been specializing in supplying 4130 chromoly to car builders and racers for over 40 years — we’ve learned a lot about tubing. We stock a large inventory of round chromoly tubing, offer custom tube bending services, and carry 4130N chromoly plate for all your fabrication needs.
Domestic Sourcing — No Compromises. We offer only premium domestically drawn 4130N tube, or material produced in Germany which has proven very satisfactory over time. We do not offer Asian-produced chromoly — it does not bend, weld, or perform the same as DFARS-compliant 4130 tube.
4130 Round Chromoly Tubing — Many combinations, Cut to Length
Premium 4130N normalized chromoly tubing, Cold Drawn Seamless (CDS), certified to meet or exceed MIL-T-6736B spec. Available in 31 outside diameter/wall thickness combinations from 3/8" to 1-5/8" OD, in pre-cut lengths from 12" to 90". Also known as chrome moly, chrome alloy, ProMoly, or 4130 CDS tube.
- 4130N Round Chromoly Tubing — 3/8" to 1-5/8" OD, 12"–90" Lengths, — 4130 Round Chromoly Tubing, Cut to Length — 31 size/wall combinations, MIL-T-6736B spec, TIG/MIG weldable.
Standard applications: Drag Racing, Circle Track, Off Road, Road Race, Rally Car, Karting, Motorcycles, Bicycling and Homebuilt Aircraft.
Popular uses: Tube chassis, roll cages, control arms, linkages, tie rods, wing struts, body mount supports.
Shipping Tip: Order pieces 48" or shorter to maximize shipping cost savings.
How to Telescope Tubing

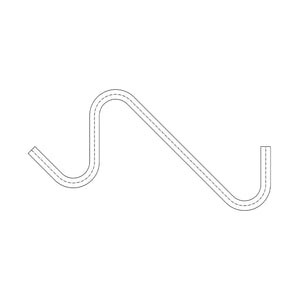

Custom Tube Bending — Any Angle, Any Configuration
Need a bend that doesn’t come off the shelf? Pro-Werks offers custom bending of 4130 chromoly tubing to your specifications. Minimum basic single bend starts at $50.00 per bend plus material. Complex pieces requiring additional layout time are charged accordingly. Please allow 5–10 business days for scheduling.
Tube bending capabilities: 3/8" to 1-5/8" OD, bend radii from 15/16" to 7", up to 180° of bend. Bend types available: Acute, Right Angle, Obtuse, Parallel, Dual Angle, and Complex.
- Custom Tube Bending — Pro-Werks Custom Tube Bending — submit your bend diagram via the product form for review, 5–10 business day lead time
- Custom Six Point Cage Kit — Front Hoop, Intermediate Hoop & Back Bar to Your Specs — Pro-Werks Custom Six Point Cage Kit — submit your dimensions via the product form for review, 5–10 business day lead time

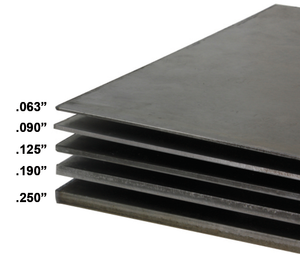

4130 Chromoly Plate — Aircraft Grade AMS-6345-C, 5 Thicknesses
Aircraft grade 4130 chromoly flat stock, AMS-6345-C normalized. The primary difference between hot and cold rolled 4130 sheet/plate is cosmetic — the mechanical strength is very similar. Smooth surface finish. Perfect for fabricating high-strength custom tabs, brackets, and gussets. Available in 5 thicknesses and multiple pre-cut sizes.
- .063" (1/16") — 2.57 lbs/sq ft
- .090" (3/32") — 3.67 lbs/sq ft
- .125" (1/8") — 5.14 lbs/sq ft
- .190" (3/16") — 7.75 lbs/sq ft
- .250" (1/4") — 10.21 lbs/sq ft
4130 Chromoly Steel Plate, AMS-6345-C — several pre-cut sizes available, cut tolerance typically +/– 1/4", Made in USA
Complete Your Chassis Build
Chromoly tubing and plate pair perfectly with these related components from The Chassis Shop:
- Cage Kits & Pre-Bent Chromoly Tubing — pre-bent 4130N tubing kits for roll cages and chassis builds
- Tube Adapters — CNC-machined chromoly weld-in threaded ends for control arms and linkages
- Weld Tabs & Brackets — over 100 mild steel and chromoly tabs and brackets for chassis fabrication
- Clevises — weld-in and bolt-on chromoly clevises for linkages, wing struts, and suspension
Note: Welding should always be performed by a qualified welder.
Proudly Made in the USA.
