Clear and Tinted Windscreens
Lexan Windscreens, NACA Ducts & Dragster Noses — Pro-Werks Body & Aero Components, Made in the USA
From keeping the wind off your face at 300 MPH to managing airflow through your body panels, Pro-Werks has the body and aero components to meet your build needs. Lightweight, strong, and built to the same exacting standards as every Pro-Werks component — crafted by skilled American workers.

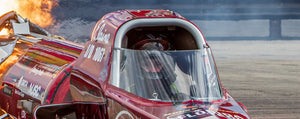

Lexan Dragster Windscreens — Clear & Smoke Tint, 4 Sizes
Pro-Werks dragster windscreen are formed from 1/8" thick scratch-resistant GE Lexan, available in clear or smoke tint. Edges may be trimmed on the top or bottom and finish sanded for final detailing. Each windscreen is prepped with a protective coating that dissolves with water before installation. Covers both full-size dragster and junior dragster needs.
- Junior Width — 14" Wide (bottom) / 12" Wide (top) / 6" Tall / 25" Long
- Standard Width — 17" Wide (bottom) / 14" Wide (top) / 7" Tall / 33" Long
- Standard Width Tall — 17" Wide (bottom) / 14" Wide (top) / 9" Tall / 33" Long
- Wide Width — 20" Wide (bottom) / 17" Wide (top) / 10" Tall / 33" Long
Pro-Werks Lexan Dragster Windscreen — 1/8" GE Lexan, clear or smoke tint, trimmable edges, Made in USA
PRO Fabrication Tip: Dimensions listed are as formed and may be flexed slightly on installation. Trim and finish sand the top or bottom edge (or both) to fit your unique installation. The protective coating dissolves with water before final install.
Fiberglass NACA Ducts — Low Drag Air Intake & Exhaust, 3 Sizes
Pro-Werks universal NACA inlet ducts are lightweight, hand-laid fiberglass construction — providing a positive, low-resistance method of air transfer with minimal drag. The mounting flange measures approximately 1" wide and is easily installed with bonding compound, rivets, or small screws on fiberglass, carbon fiber, aluminum, or steel body panels.
Benefits: Low drag, introducing fresh air, extracting undesirable hot air, balancing air pressure.
Directional: Mounted forward-facing for fresh air intake; mounted reversed as a backward NACA duct to extract hot air. Mount individually or side-by-side for increased airflow volume.
Common mounting locations: Hood, roof, or side panel.
- 3 Sizes Available — 3", 4" & 7" Wide — Pro-Werks Fiberglass NACA Duct — hand-laid fiberglass, low drag, hood/roof/side panel mount, Made in USA
NACA stands for National Advisory Committee for Aeronautics — the predecessor to NASA. The unique NACA duct shape was developed for optimum aerodynamic performance.
Hand-Laid Fiberglass Dragster Noses — Econo & Long Fuel Styles
Pro-Werks composite dragster noses are all about quality. The hand-laid fiberglass process produces a consistent thickness — resulting in a lightweight, strong finished part. Both styles are trimmable to match the height, length, and mounting requirements of your race car. Typical mounting uses Dzus fasteners to secure the nose to the chassis.
- Econo Dragster Nose — 8-1/2" Wide × 8-1/2" Tall × 25" Long — Pro-Werks Fiberglass Econo Dragster Nose — small frontal area, smooth design, minimal air resistance, trimmable, Made in USA
- Long Fuel Dragster Nose — 11-3/4" Wide × 8-1/2" Tall × 28" Long — Pro-Werks Long Fuel Dragster Nose — includes built-in NACA-type feature on top (cut out for function or leave as-is), trimmable, Made in USA
Complete Your Build
Windscreens, NACA ducts, and dragster noses work hand-in-hand with these related components from The Chassis Shop:
- Dzus Quarter-Turn Buttons & Panel Fasteners — the standard fastener system for securing dragster noses, body panels, and access covers
- Wings — Pro-Werks aluminum dragster wings and wing components
- Weld Tabs & Brackets — chassis tabs and brackets for mounting body panels and aero components
- Fabrication Tools — Dzus dimple tools, transfer punches, and Cleco fasteners for panel installation
Proudly Made in the USA.
