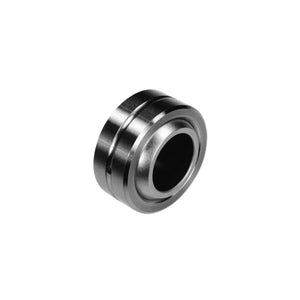

Aurora Rod End Insert
COM6/COM6-T
Degree of Misalignment 10°
Radial Load Capacity (lbs) 8,400
COM8/COM8-T
Degree of Misalignment 9.5°
Radial Load Capacity (lbs) 13,250
COM10/COM10-T
Degree of Misalignment 8.5°
Radial Load Capacity (lbs) 21,280
COM12/COM12-T
Degree of Misalignment 9°
Radial Load Capacity (lbs) 31,920
Rod End Inserts
Perfect for shock end bearings and components that don't need adjust-ability.
Available in either standard ball and race construction, or with PTFE liners. This selection of spherical bearings is the answer for fabricated components that don't require adjust ability. A few of the common uses include rod end inserts for uni-ball cups, and swivel joints for eye type performance shocks.
Why a PTFE Liner?
The military spec Teflon race greatly increases dynamic wear characteristics, making this the ideal choice for 4-links and ladder bars. This PTFE lined option is not to be confused with other rod end manufacturers' soft Nylon races.
