Aurora Male Mild Steel Steering Shaft Support Rod End

Sale price $39.99 USD
Part # CM12-12

• SAVE 10% on 10 or more Aurora Rod Ends
• Mix-N-Match any Aurora Rod Ends to save

Discount will appear in cart.

Spend $175 to get free shipping

You may also need

Pro-werks 3/4 Inch Hole, 1/4 Inch Thick, 1-3/8 Inch Hole Height, Mild Steel Flat Weld Tab

Pro-werks Plated Steel Jam Nuts, Grade 5

Pro-werks 1-1/4” OD X .095” (1.06" ID) Tube Size, Chromoly Steel 4130N Round Tube Adapter

Shop with confidence

  • Trusted Reviews
  • Personalized Service
  • Secure Checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

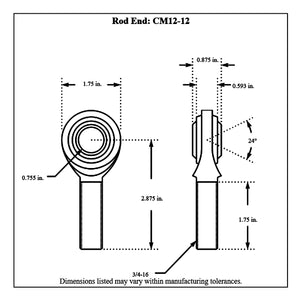

 3/4-16 Right Hand Male Mild Steel Rod End with 0.755 in. Inside diameter hole.

This 3/4-16 RH threaded rod end has a special .005" oversize hole in the ball allowing it to easily accept a 3/4" diameter steering shaft.


What is Radial Static Load Capacity?

These loads are based upon the minimal mechanical properties of the design configuration of the stressed areas. The Operation Load Capacity of Aurora rod ends is based upon the Radial Static Load Rating. Appropriate safety factors should be utilized with the application. Full rotation assemblies up to 100 rpm should not exceed 10% of the radial static load.


What is Axial Load Capacity?


Axial static load is the force that is applied through the bore of the ball. Maximum axial static load capacity is recommended at 15% of the radial static load for Aurora two piece rod ends, 10% for three piece rod ends.


What is Bearing Misalignment?


A rod end or spherical bearings ability to mis-align is measured by the degree of angle the ball can accommodate without interference.
