Pro-werks Undrilled Quick Release Steering Hub, 42.1 SFI Certified

Sale price $134.99 USD
Part # C52-230
Spend $175 to get free shipping

You may also need

Pro-werks Chromoly Quick Release Steering Hub Adapter Stub, 4130N

Pro-werks Steering Bearing Kit

Pro-werks Mild Steel Steering Bearing Weld Bracket

Pro-werks Smooth Bored Both Ends, Roller Bearing Steering U-Joint

Pro-werks #65 Weld Rod, 36 Inches Long

Shop with confidence

  • Trusted Reviews
  • Personalized Service
  • Secure Checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

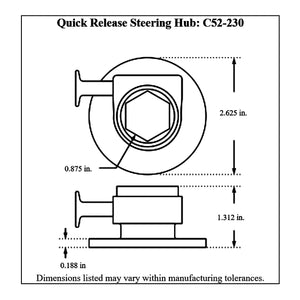

Round Flange 2.625 inch Diameter

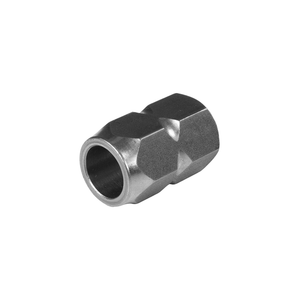

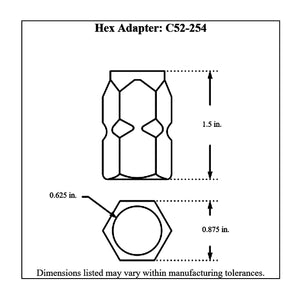

Includes 5/8 inch Smooth Bore Hex Adapter and Fasteners

Meets and Exceeds SFI Specification 42.1

Hub Assembly Weight: 3.53 oz.

We set out to build the simplest to use and the lightest race car steering wheel quick release hub and we did it.


Gain more room in your race cars cockpit by removing your steering wheel quickly and effortlessly with a Pro-werks quick disconnect steering hub.

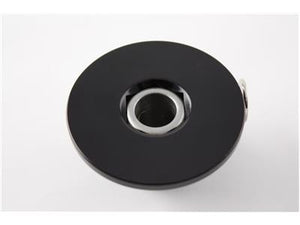

The combination of design with the right materials, enabled us to carve out all the unnecessary weight. The compact, black anodized hub is precision CNC machined from ultra-tough 2024 aerospace grade aluminum.

 The precision-fit hex design provides additional contact surface area for increased wear resistance over other shapes. This design is also faster and easier to load than contoured or splined connections.

This 4 bolt version is popular in drag racing applications when utilizing a dragster Butterfly Steering Wheel.



One-Finger Operation

The stainless steel, spring-loaded trigger pin features a “non-skid“ cupped release button for simple, positive one finger activation.





Bring it all together

An optional Adapter Stub C52-260 is available separately when using other steering shaft diameters.

C52-260_2 Chromoly Quick Release Steering Hub Adapter Stub, 4130N
