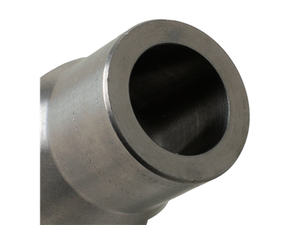

Pro-werks 9/16-26 Spline X 3/4 Inch Bored Roller Bearing Steering U-Joint

SKU C42-368

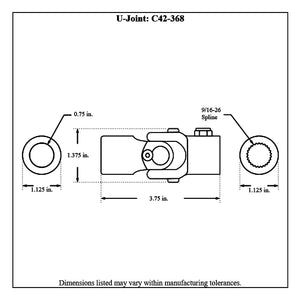

See dimensions and diagrams for each size.

Sale price $89.99 USD

Spend $175 to get free shipping

Shop with confidence

  • Trusted Reviews
  • Personalized Service
  • Secure Checkout
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Loading image: Crafted-in-USA Stiletto Replacement Boot and Wire Kit 2-1 4 Inch OD x 1-1 2 Inch ID: 9 Peaks: Dwarf Mod-lite Rack N Pinions Crafted-in-USA Stiletto Replacement Boot and Wire Kit 2-1 4 Inch OD x 1-1 2 Inch ID: 9 Peaks: Dwarf Mod-lite Rack N Pinions

You may also need

9/16-26 Spline X 3/4 Inch Bored Roller Bearing Steering U-Joint.

The Spline is correctly sized to fit the Stiletto Pro-Box, Stiletto Gen 5 Small Box (C42-348 series) & Pinto OEM style rack

1/4-28 NF set screws on splined end

Precision in Motion


These durable and smooth operating U-joints are engineered for high load applications. Precision machined alloy steel bodies are fitted with caged needle bearings and a slight pre-load to create a joint without backlash. This results in enhanced sensitivity at the steering wheel, making even the smallest amount of steering input more effective.


Designed for longevity without compromise, they are pre-greased and effectively sealed with hi temp O-rings to retain grease in severe conditions. Capable of a maximum of 32 degrees of operating angle, with a recommended angle not to exceed 20 degrees for the smoothest result.

The splined ends of these U-joints are sized correctly; we have found that this is often not the case with competitive brands of U-joints, as they have designed their spline broaching tooling off of generations of parts in service and not to the original manufacturers specifications.

The splines in these U-joints are precision broached to the correct size - we guarantee they will fit their intended purpose.
