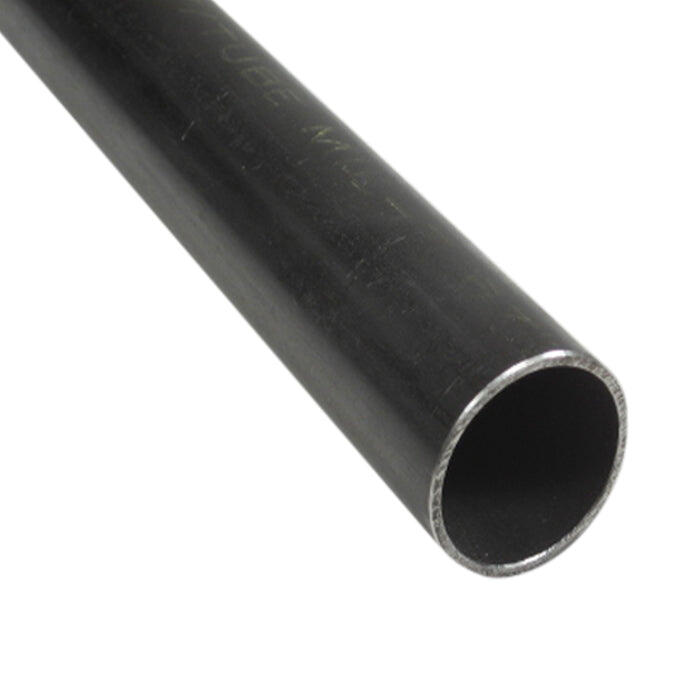

4130N Chromoly Round Tubing

Sale price $11.99 USD
Part # 41-38-058-12
Select Outside Diameter First
Then Select Wall Thickness
Select Length Last

FREE Shipping eligible on all tubing 48 in. long or shorter.

Take advantage of our discounted shipping rates in checkout for lengths over 48 in.

  • 100% Satisfaction Guarantee
  • Live Expert Tech Support
  • Free U.S. Shipping Available
  • 30-Day Money-Back Guarantee
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks #65 Weld Rod, 36 Inches Long

Pro-werks 1-1/8” OD X .058” (1.009" ID) Tube Size, Chromoly Steel 4130N Round Tube Adapter

Pro-werks Chromoly Weld In Slot Clevis, 4130N

Pro-werks 5/16 Inch Hole, 1/8 Inch Thick, 1 Inch Hole Height, Chromoly Flat Weld Tab, 4130N

4130N Chromoly Steel Plate

Bundled lengths of 4130N chromoly tubing stacked in a warehouse, cut ends showing hollow walls and smooth dark finish

Shop our online metal selection of Round Chromoly Tubing

We offer a large selection of premium quality round chromoly tubing, 4130 alloy heat-treated to condition N (Normalized). This material meets or exceeds the MIL T 6736 B spec and is often referred to by several different names: chromemoly, chrome alloy, Promoly or simply 4130 tube.

Our Chromoly tubing selection combined with all of our other offerings, is an example of why the Chassis Shop leads the way in servicing you with all your fabrication needs in one call.

Available in several pre-cut lengths for easy and affordable online metal ordering.


Tips for Cost Savings on Tubing Shipments:

If you can use pieces 48 inches or shorter, you will save money on tubing shipping costs.

We recommend ordering tubing in shorter lengths whenever possible and we do offer FREE Shipping to qualifying orders with tubing 48 inches long or shorter.

Even with our heavily discounted shipping rates that we provide, tubing over 48 inches long does cost more to ship due to carriers' additional "oversized length" penalties.

Why pay a premium for shipping and then cut the tubing shorter after you receive it?

If you can use 48 inch lengths (or less), it makes more sense to place your order with a pre-cut mindset versus purchasing long lengths.

We offer Chromoly Tubing competitively priced in convenient pre-cut 1 foot increments - up to 90 inches long (the maximum allowable length we can ship you thru most carriers).

If you need lengths over 48 inches long for your project, it's no problem order it that way. Fortunately we do provide you with discounted shipping rates.


PRO Tech Tip:

How to Telescope Tubing

For the best fit when telescoping tubing, select 0.058" wall tubing and slide over tubing with a 1/8" smaller outside diameter (O.D.).

Example: 1-1/8" x .058" fits over 1" O.D. tubing.



Custom Tube Bending Options


Tubing dimensions:

Dimensioned drawing of a round tube cross-section, labeled O.D. across the outside, I.D. across the bore and wall thickness


3/8 OD x 0.058 Wall Thickness
0.259 in. Inside Diameter
0.1964 lbs. per foot

1/2 OD x 0.049 Wall Thickness
0.402 in. Inside Diameter
0.2360 lbs. per foot

1/2 OD x 0.058 Wall Thickness
0.384 in. Inside Diameter
0.2738 lbs. per foot

5/8 OD x 0.049 Wall Thickness
0.527 in. Inside Diameter
0.3014 lbs. per foot

5/8 OD x 0.058 Wall Thickness
0.509 in. Inside Diameter
0.3512 lbs. per foot

3/4 OD x 0.049 Wall Thickness
0.652 in. Inside Diameter
0.3668 lbs. per foot

3/4 OD x 0.058 Wall Thickness
0.634 in. Inside Diameter
0.4287 lbs. per foot

3/4 OD x 0.095 Wall Thickness
0.560 in. Inside Diameter
0.6646 lbs. per foot

3/4 OD x 0.120 Wall Thickness
0.510 in. Inside Diameter
0.8074 lbs. per foot

7/8 OD x 0.058 Wall Thickness
0.759 in. Inside Diameter
0.5061 lbs. per foot

7/8 OD x 0.095 Wall Thickness
0.685 in. Inside Diameter
0.7914 lbs. per foot

1 OD x 0.049 Wall Thickness
0.902 in. Inside Diameter
0.4977 lbs. per foot

1 OD x 0.058 Wall Thickness
0.884 in. Inside Diameter
0.5835 lbs. per foot

1 OD x 0.065 Wall Thickness
0.870 in. Inside Diameter
0.6491 lbs. per foot

1 OD x 0.083 Wall Thickness
0.834 in. Inside Diameter
0.8129 lbs. per foot

1 OD x 0.095 Wall Thickness
0.810 in. Inside Diameter
0.9182 lbs. per foot

1-1/8 OD x 0.058 Wall Thickness
1.009 in. Inside Diameter
0.6609 lbs. per foot

1-1/8 OD x 0.083 Wall Thickness
0.959 in. Inside Diameter
0.9237 lbs. per foot

1-1/4 OD x 0.058 Wall Thickness
1.134 in. Inside Diameter
0.7384 lbs. per foot

1-1/4 OD x 0.065 Wall Thickness
1.120 in. Inside Diameter
0.8226 lbs. per foot

1-1/4 OD x 0.083 Wall Thickness
1.084 in. Inside Diameter
1.0340 lbs. per foot

1-1/4 OD x 0.095 Wall Thickness
1.060 in. Inside Diameter
1.1720 lbs. per foot

1-1/4 OD x 0.120 Wall Thickness
1.010 in. Inside Diameter
1.4480 lbs. per foot

1-3/8 OD x 0.058 Wall Thickness
1.259 in. Inside Diameter
0.8158 lbs. per foot

1-3/8 OD x 0.095 Wall Thickness
1.185 in. Inside Diameter
1.2990 lbs. per foot

1-1/2 OD x 0.049 Wall Thickness
1.402 in. Inside Diameter
0.7593 lbs. per foot

1-1/2 OD x 0.058 Wall Thickness
1.384 in. Inside Diameter
0.8932 lbs. per foot

1-1/2 OD x 0.065 Wall Thickness
1.370 in. Inside Diameter
0.9962 lbs. per foot

1-1/2 OD x 0.083 Wall Thickness
1.334 in. Inside Diameter
1.2560 lbs. per foot

1-1/2 OD x 0.095 Wall Thickness
1.310 in. Inside Diameter
1.4260 lbs. per foot

1-5/8 OD x 0.083 Wall Thickness
1.459 in. Inside Diameter
1.3670 lbs. per foot

Questions and Answers
Is 4130N Chromoly Steel stronger than Mild Steel?

Yes. 4130N Chromoly steel has a significantly higher tensile strength than mild steel, making it a preferred material for high-stress components. Ideal for fabrication of suspension, linkage components, and applications where maximum strength-to-weight ratio is required.

Can I weld Mild Steel to Chromoly Steel?

Yes, it is a very common practice. Mild Steel and 4130N Chromoly Steel can be welded together using the proper welding process and the correct filler rod.

Should I sand off the surface scale of metal before welding?

Yes, it is always a good practice to clean any material in the areas to be welded to reduce the potential introduction of impurities from affecting the final strength of the weld.

Do I need to normalize a component or chassis made of 4130N Chromoly steel after welding?

Some applications may require normalizing while others may not. This is a complex topic and can't be adequately addressed in a short paragraph. Please call our tech team at 800-530-9494 to discuss your specific project.

How do I telescope or slip-fit tubing?

For the best fit when telescoping tubing, select 0.058" wall tubing and slide over tubing with a 1/8" smaller outside diameter (O.D.).

Example: 1-1/8" x .058" tubing fits over 1" O.D. tubing

Drawing of round tubing sections telescoped together in decreasing diameters
