Pro-werks AN Thread Weld Bung
Specifications
AN Male Bungs
| Size | Outside Diameter | Fits Tube Size |
|---|---|---|
| -4 AN | 3/4 in. | 3/4 in. OD x 0.058 in. Wall |
| -6 AN | 7/8 in. | 7/8 in. OD x 0.058 in. Wall |
| -8 AN | 1 in. | 1 in. OD x 0.058 in. Wall |
| -10 AN | 1-1/8 in. | 1-1/8 in. OD x 0.058 in. Wall |
| -12 AN | 1-3/8 in. | 1-3/8 in. OD x 0.058 in. Wall |
| -16 AN | 1-5/8 in. | 1-5/8 in. OD x 0.058 in. Wall |
AN Female Bungs
| Size | Thread | Steel Bung OD |
|---|---|---|
| -4 AN | 7/16-20 | 3/4 in. |
| -6 AN | 9/16-18 | 7/8 in. |
| -8 AN | 3/4-16 | 1-1/8 in. |
| -10 AN | 7/8-14 | 1-1/4 in. |
| -12 AN | 1-1/16-12 | 1-1/2 in. |
| -16 AN | 1-5/16-12 | 1-3/4 in. |
Get the best Bung for your Buck!

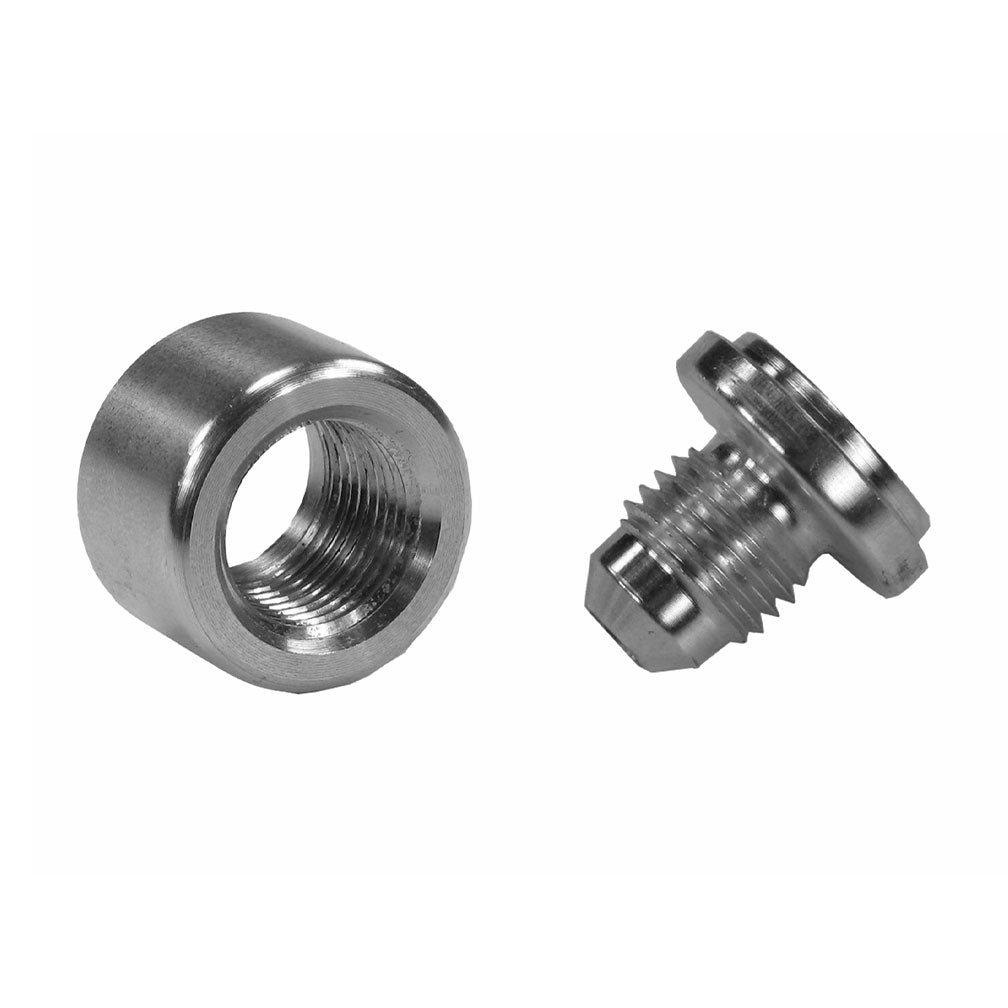

Pro-werks Weld Plumbing Bungs are available in weld-able 6061-T6 Aluminum or Mild Steel, produced on machining centers responsible for so many of our precision parts. Available in both Male and Female versions.

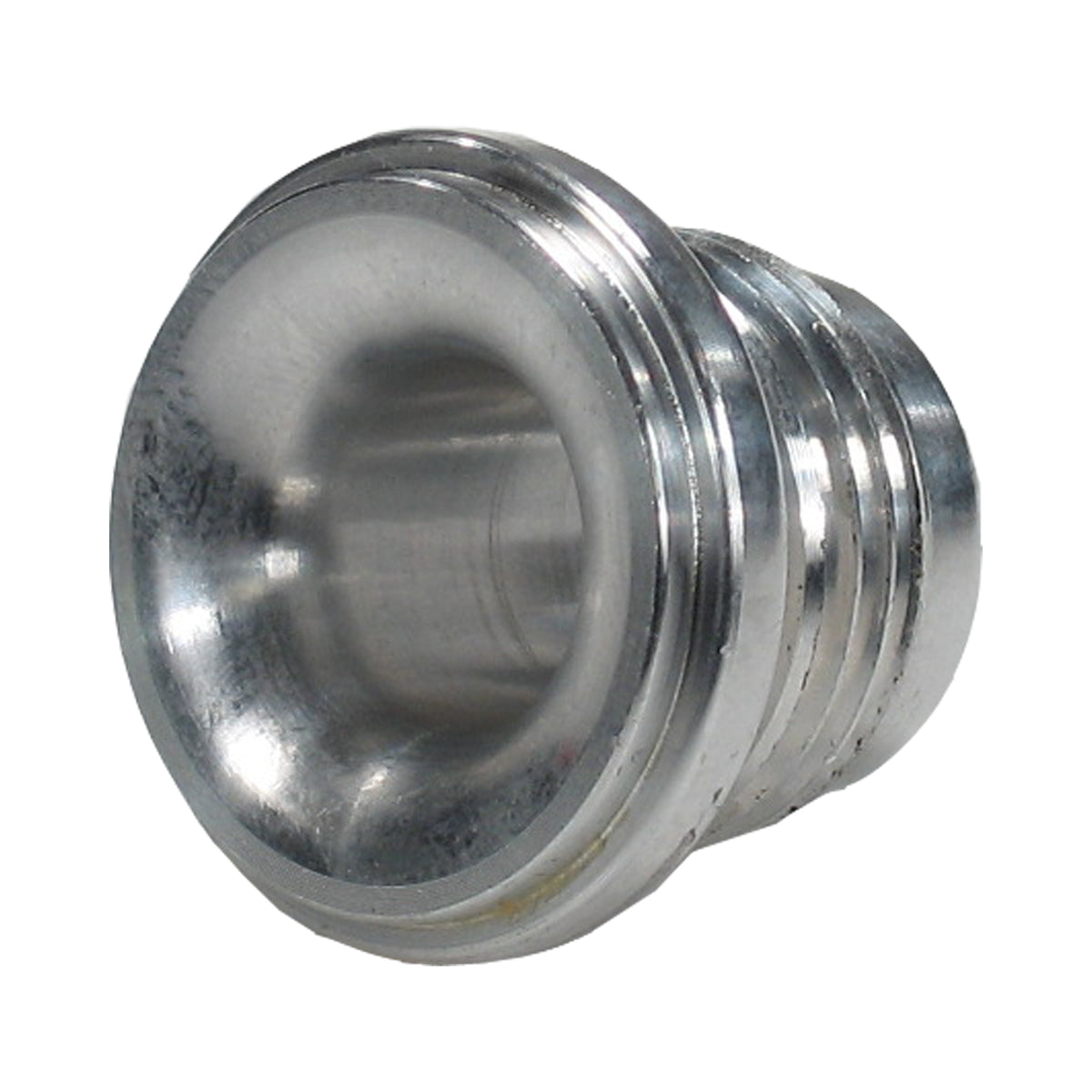

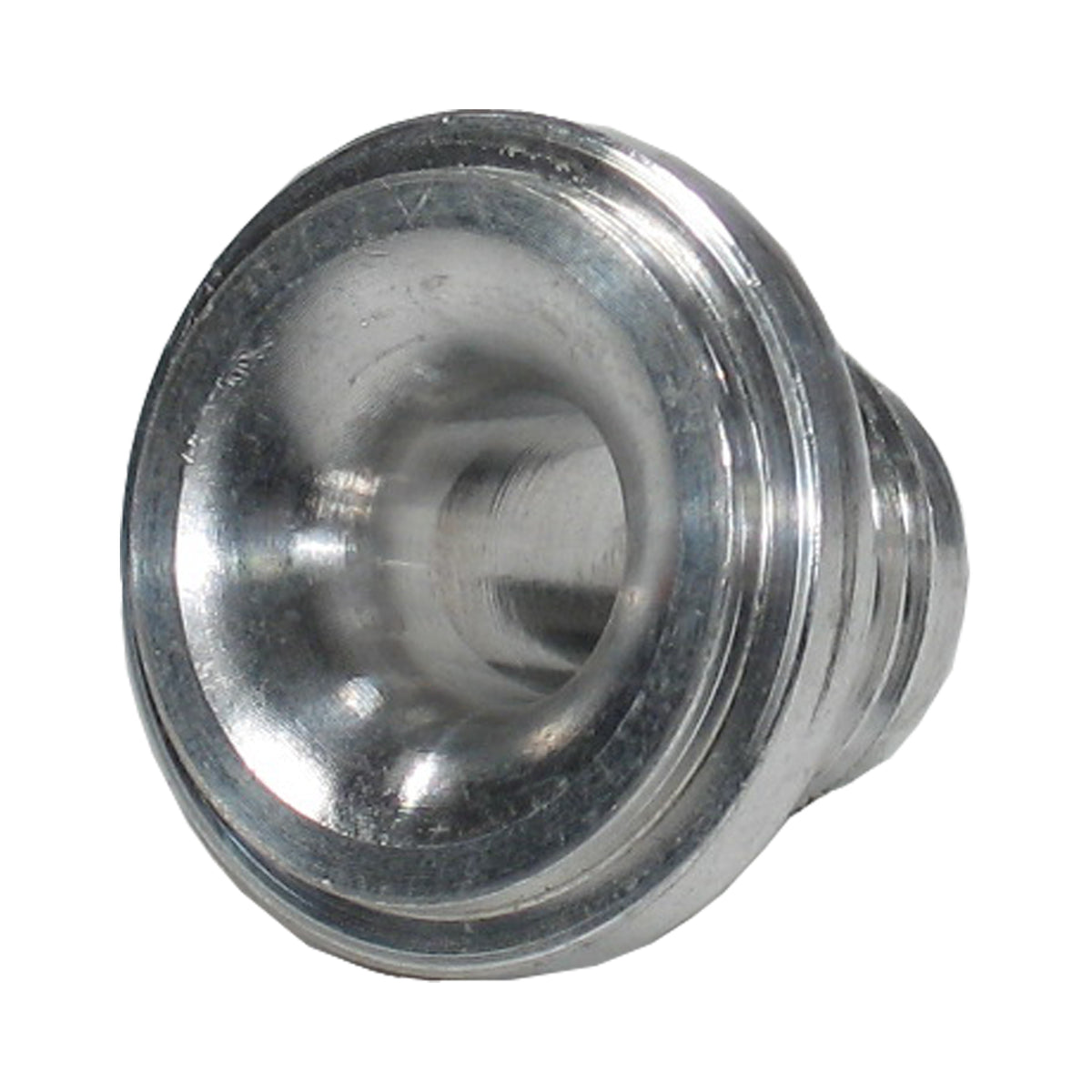

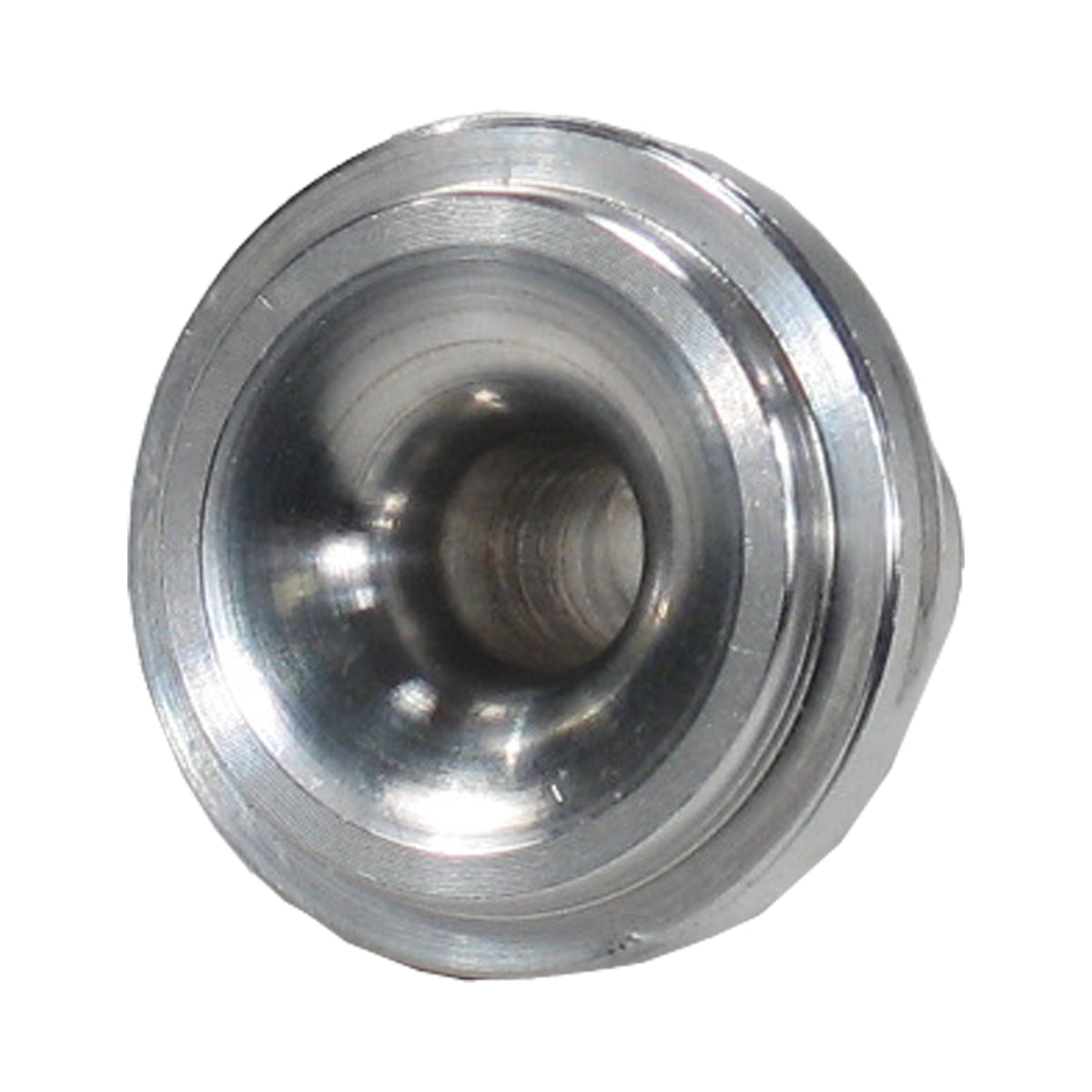

The Pro-werks Male weld bungs feature a contoured inlet for maximum flow - precision CNC machined and available in your choice of 6061-T6 Aluminum or Mild steel.

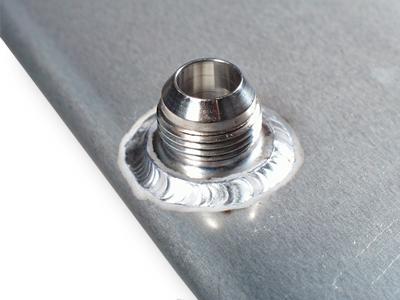

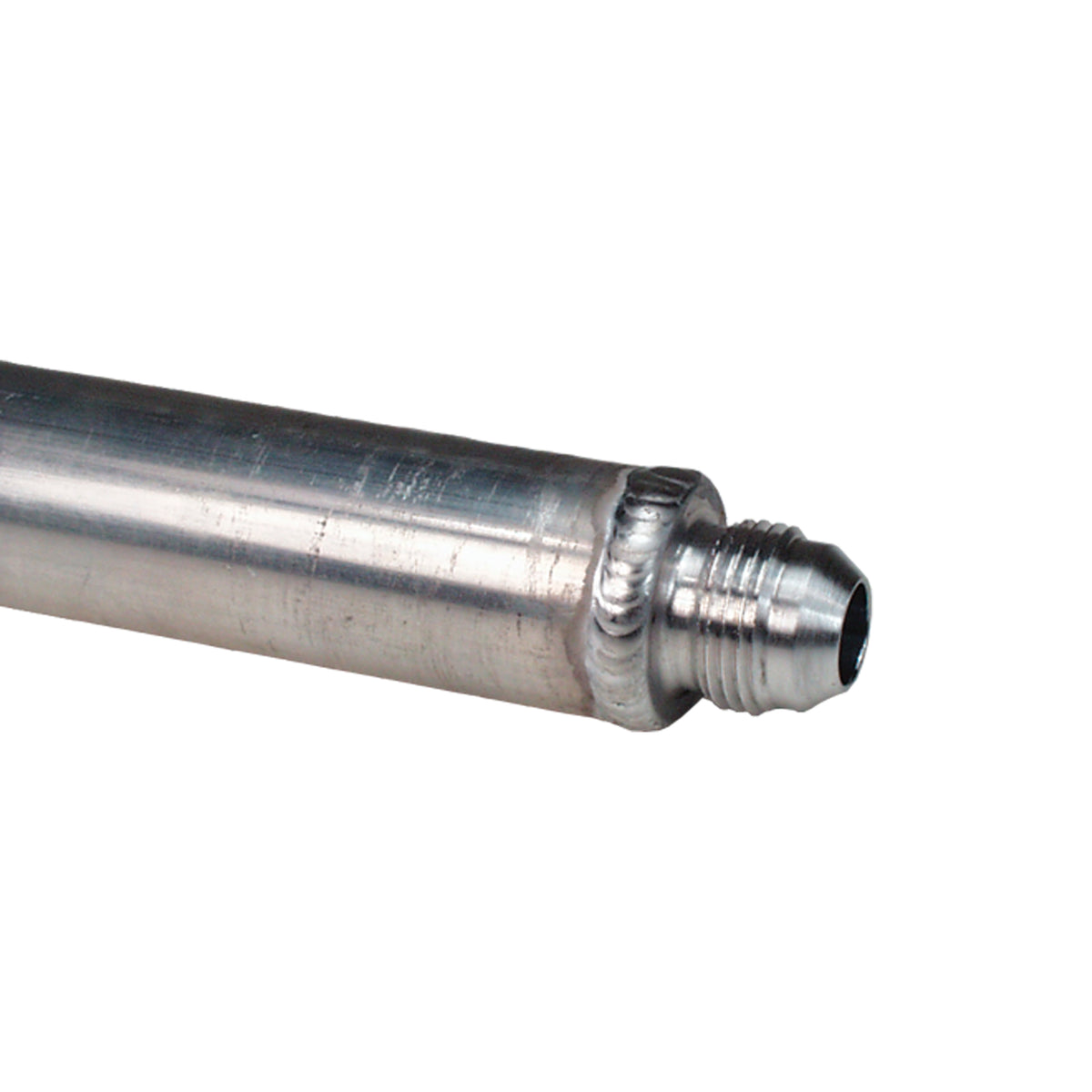

You will appreciate the stepped shoulder at the base of the bung, it serves as a positioning locator. This design feature holds the bung in place while welding in a hole of a flat surface, or in the end of tubing. Ample cross section in the weld land also helps to reduce warping during welding.
Ā
AN Bungs Contoured for Optimum Flow

Male Weld Bung Specifications

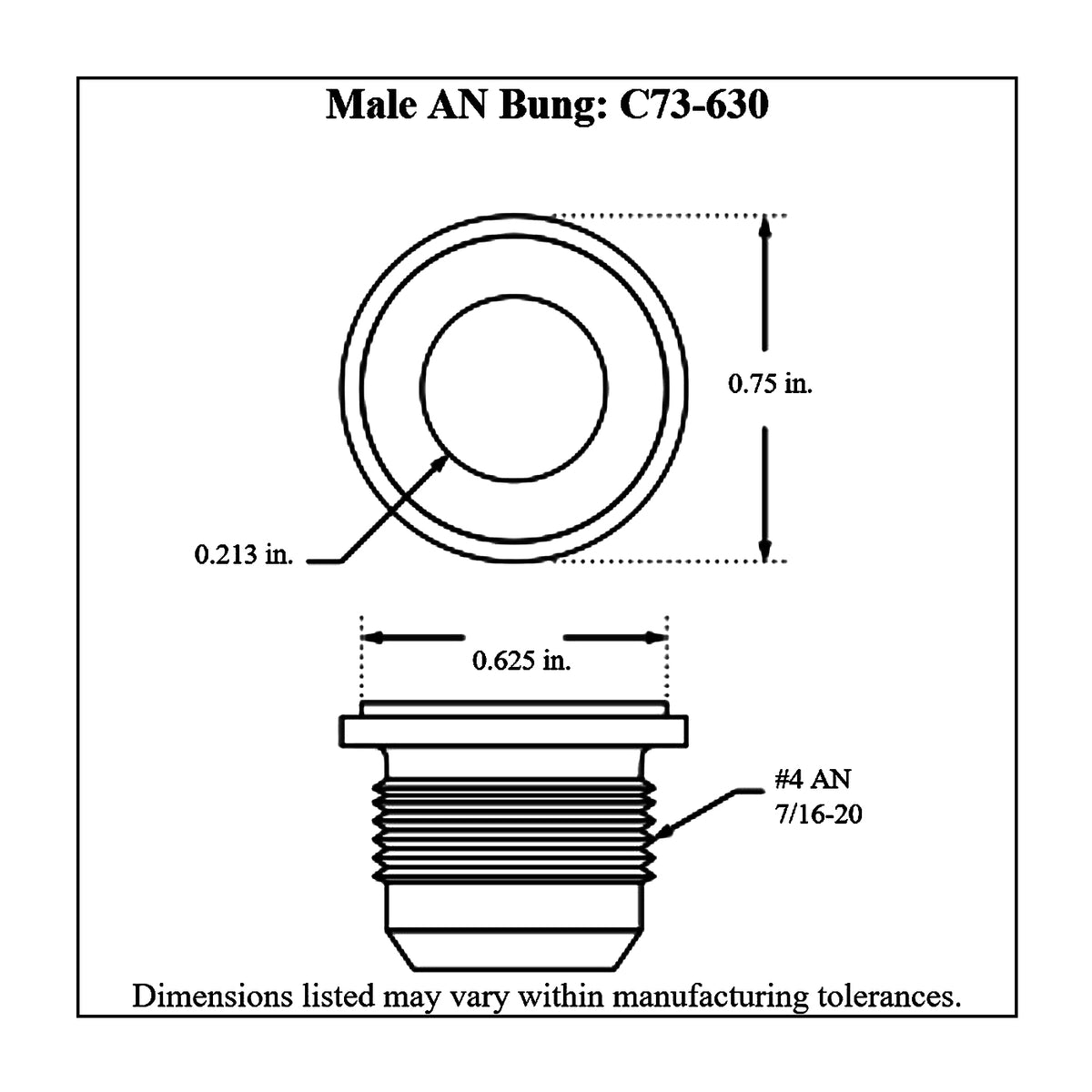

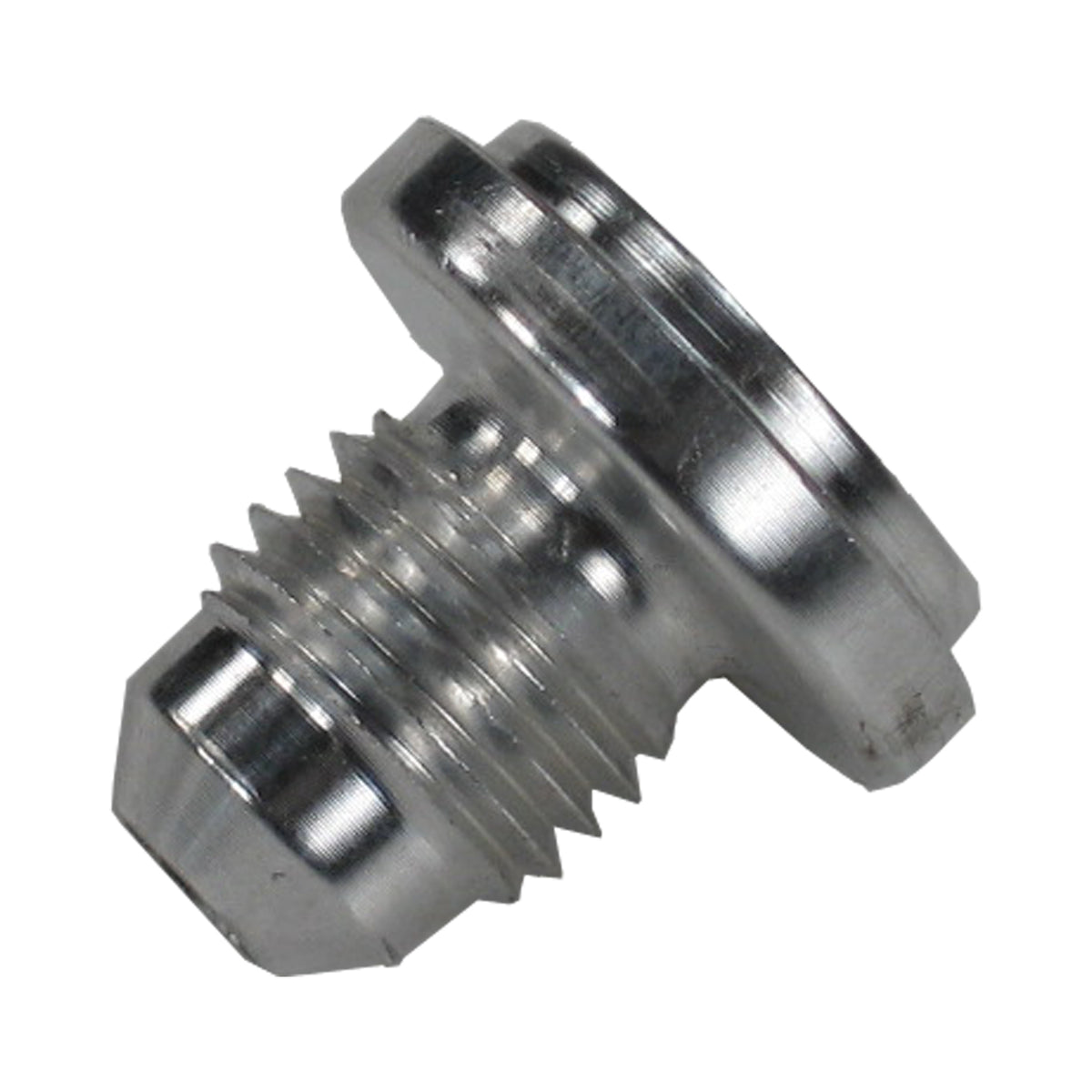

-4 AN Male Bung
3/4 in. diameter, also fits tube 3/4 in. diameter x 0.058 in. thick

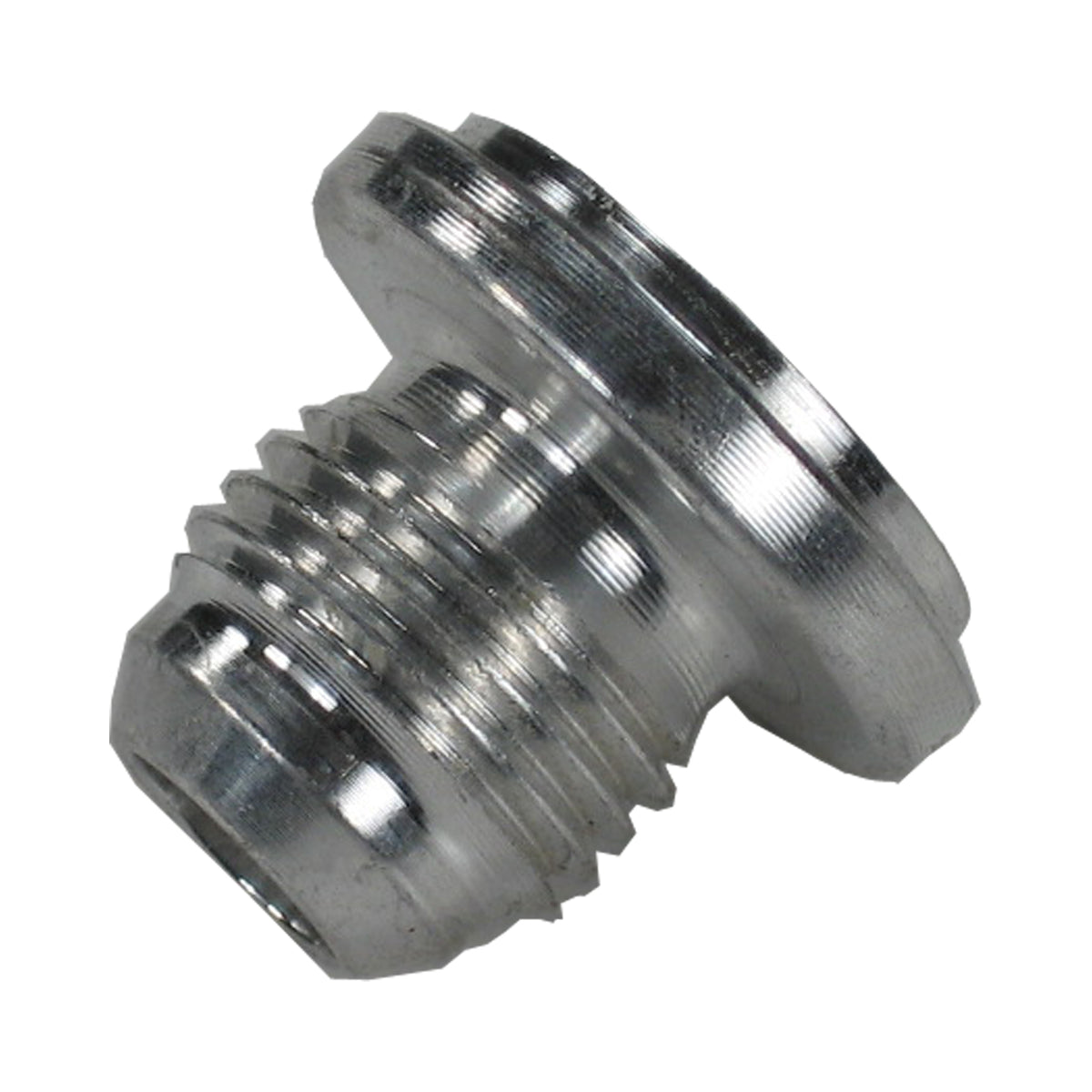

-6 AN Male Bung
7/8 in. diameter, also fits tube 7/8 in. diameter x 0.058 in. thick

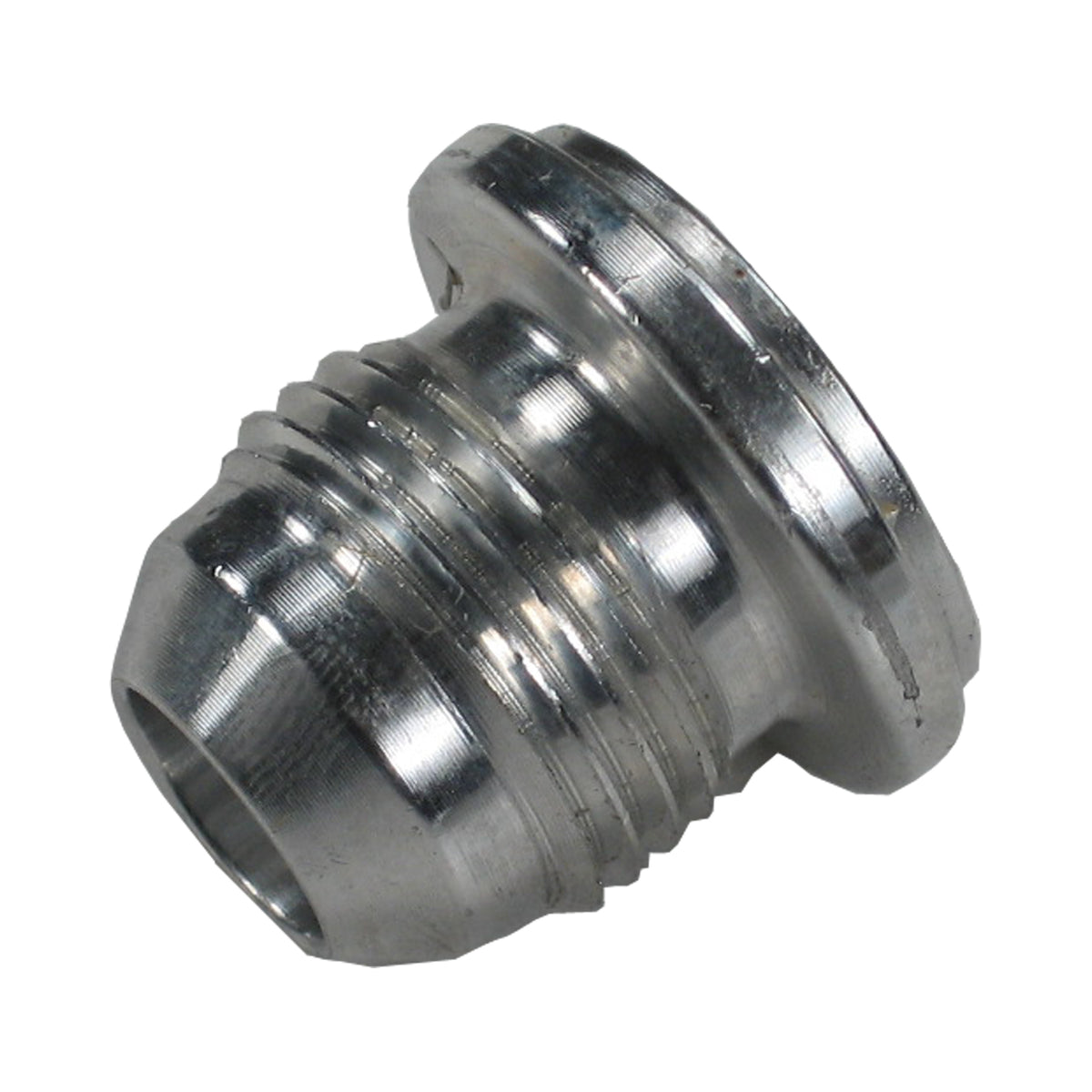

-8 AN Male Bung
1 in. diameter, also fits tube 1 in. diameter 0.058 in. thick

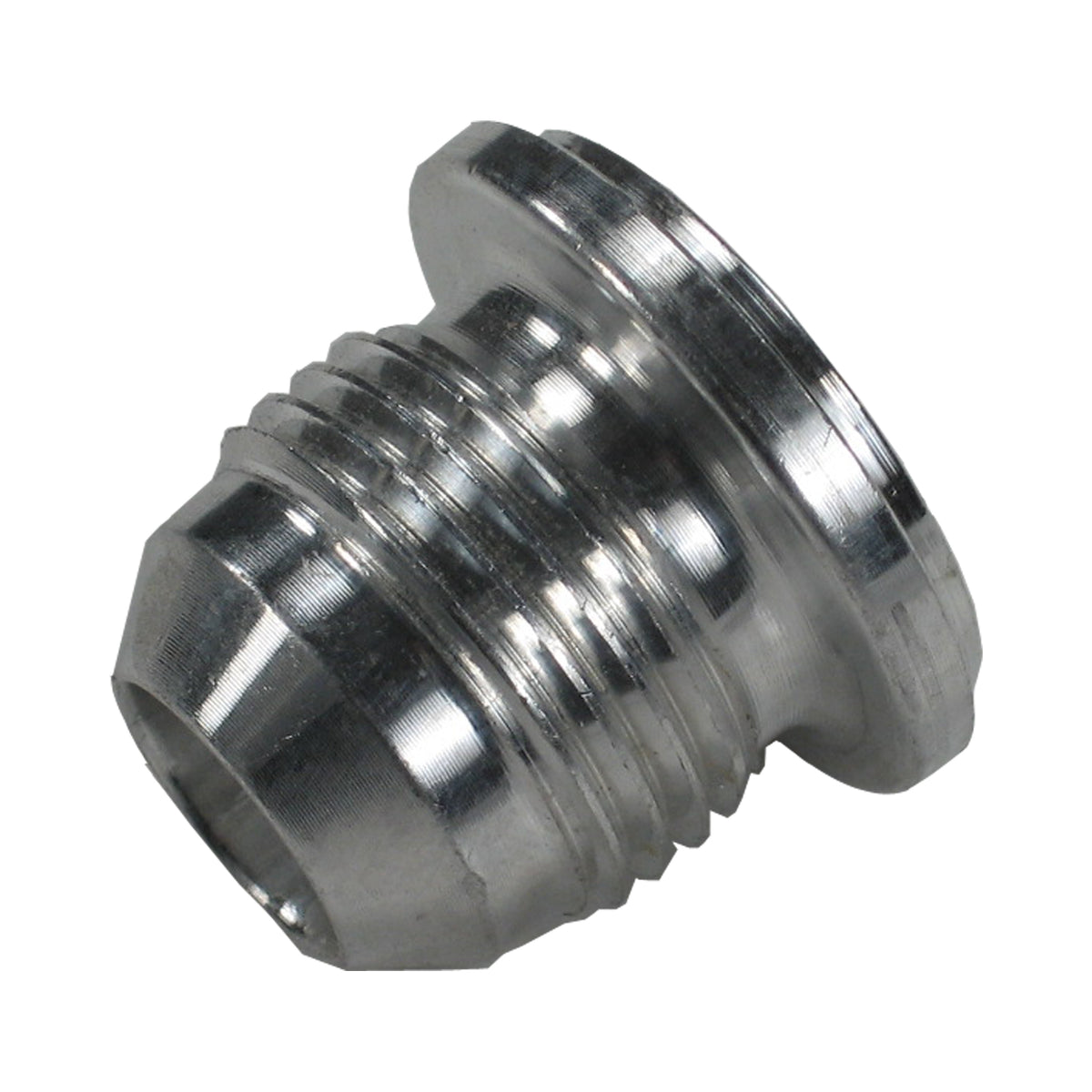

-10 AN Male Bung
1-1/8 in. diameter, also fits tube 1-1/8 in. diameter 0.058 in. thick
-12 AN Male Bung
1-3/8 in. diameter, also fits tube 1-3/8 in. diameter 0.058 in. thick
-16 AN Male Bung
1-5/8 in. diameter, also fits tube 1-5/8 in. diameter 0.058 in. thick
Female Weld Bung Specifications
-4 AN Female Bung
7/16-20 Thread
(Steel: 3/4 in. OD)
-6 AN Female Bung
9/16-18 Thread
(Steel: 7/8 in. OD)
-8 AN Female Bung
3/4-16 Thread
(Steel: 1-1/8 in. OD)
-10 AN Female Bung
7/8-14 Thread
(Steel: 1-1/4 in. OD)
-12 AN Female Bung
1-1/16 -12 Thread
(Steel: 1-1/2 in. OD)
-16 AN Female Bung
1-5/16-12 Thread
(Steel: 1-3/4 in. OD)
Make things easy by using the Best bungs available ā by Pro-werks.
Click here to see Pro-werks Fill Cap Assemblies
Note: Welding should always be performed by a qualified welder.
