Made in the USA

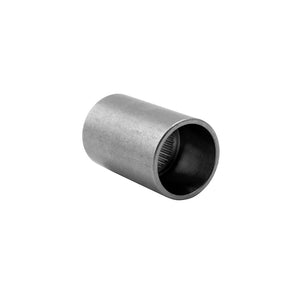

5/8-36 Female Spline, Weld On Coupler, fits 6.4:1, 10:1, 12:1, 15:1 Stiletto Rack-n-Pinion

Sale price $32.99 USD
Part # C42-353-B
Select Style - Size

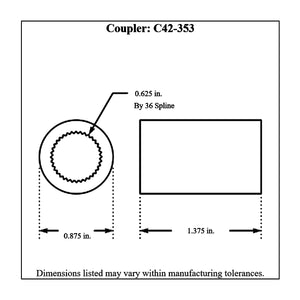

See dimensions and diagrams for each size.

Spend $175 to get free shipping

You may also need

Pro-werks Smooth Bored Both Ends, Roller Bearing Steering U-Joint

Pro-werks Self-Lubricating Bearings, Pair

Shop with confidence

  • Trusted Reviews
  • Personalized Service
  • Secure Checkout
  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

C42-353-B
Spline is correctly sized to fit the Stiletto 5/8-36 spline pinion
Machined from 4130 N Chromoly

C42-355
Spline is correctly sized to fit the Stiletto 5/8-36 spline pinion
Machined from 1018 mild steel

C42-355-B
Spline is correctly sized to fit the Stiletto 5/8-36 spline pinion
Machined from 1018 mild steel

C42-403-A
Spline is correctly sized to fit the Stiletto 5/8-36 spline pinion
Machined from 4130 N Chromoly

C42-403-B
Spline is correctly sized to fit the Stiletto 5/8-36 spline pinion
Machined from 4130 N Chromoly



The pressure angle of this spline is unique to Stiletto Steering. This proprietary spline will not fit with other 5/8-36 OEM type splined components.

We offer several types of weldable splined couplers to achieve a proper and secure connection between a steering shaft or drive unit and the steering box when a U-joint is not desired.

Split-Bolt coupler:  Provides positive clamping on the splines, plus the added security of the bolt passing thru the retaining groove of the pinion. When space or weight savings is a primary concern, the Dual-Lock coupler or Straight coupler are other options to consider. The Straight coupler does not have built-in retention so the installer should incorporate a security method for the specific application. The splines in these couplers are precision broached to the correct size and we guarantee they will fit their intended purpose.

Dual-Lock coupler:
The Dual-Lock coupler has two set screws with locking nuts offset 90 degrees from each other. This dual set screw design draws up the connection thereby eliminating the potential of undesirable lost motion with normal spline clearance. To prevent spline deformation the locking screws are positioned to locate in the external retaining groove of the pinion. The splines in these couplers are precision broached to the correct size and we guarantee they will fit their intended purpose.

Straight coupler: This coupler has no built-in retention provision; the installer will need incorporate a security method of locking the coupler to the male pinion for the specific application.

The splines in these couplers are precision broached to the correct size - we guarantee they will fit their intended purpose.
