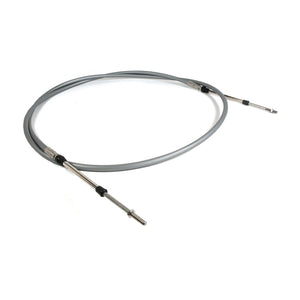

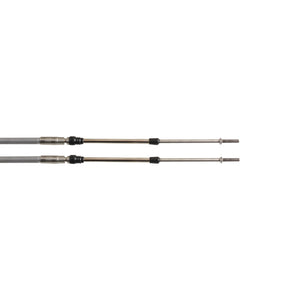

Pro-werks Silver Jacket Ultimate Push Pull Control Cable
Our Customers Also Bought
Silver Jacket Push Pull Control Cables - Smooth and Responsive
33 series Push Pull Cables are an integral part of most race vehicles; the unsung heroes of control. When your success depends on the performance of a part, it makes sense to choose the best.
That's where Pro-werks comes in — with the trademark Silver Jacket Cables. Whether you are modulating the throttle, grabbing a gear, or pulling your 'chute; you will probably use a push-pull control cable to do it.
As the Silver Jacket name implies, these 33 series cables come in the trademark Silver color — a color that will complement any paint color scheme. The flexible housing measures only 0.325" outside diameter.
How do you determine the length of a Push-Pull Control Cable needed for your application?
You can measure for tip-to-tip length (overall length), by using a hose, rope or flexible tape measure through the actual intended cable route.

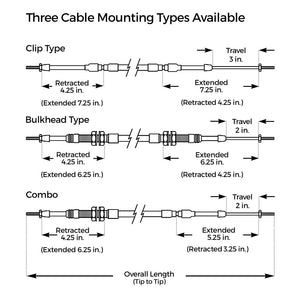

See diagram for mounting type choices and travel dimensions for compatibility with your application.
Overall Cable length is measured tip-to-tip of the 10-32 NF rods.
Silver Jacket Universal Push Pull Cables are available in 6-inch increments, so you can quickly and affordably get the length that you need for a proper fit!
This large on-the-shelf selection of sizes eliminates waiting for custom-built push-pull cables to be assembled.
Silver Jacket Cables Deliver Maximum Flexibility — Smooth Operation
The Silver Jacket Ultimate cable is capable of tight radius bends with minimal resistance, making this the recommended choice for smooth cable control.
Fitted with efficient dynamic seals and requiring very little effort, these lightweight zero friction cables have a full circle of reinforcement wires to protect and support the inner liner — delivering positive load transfer with minimal lost motion.

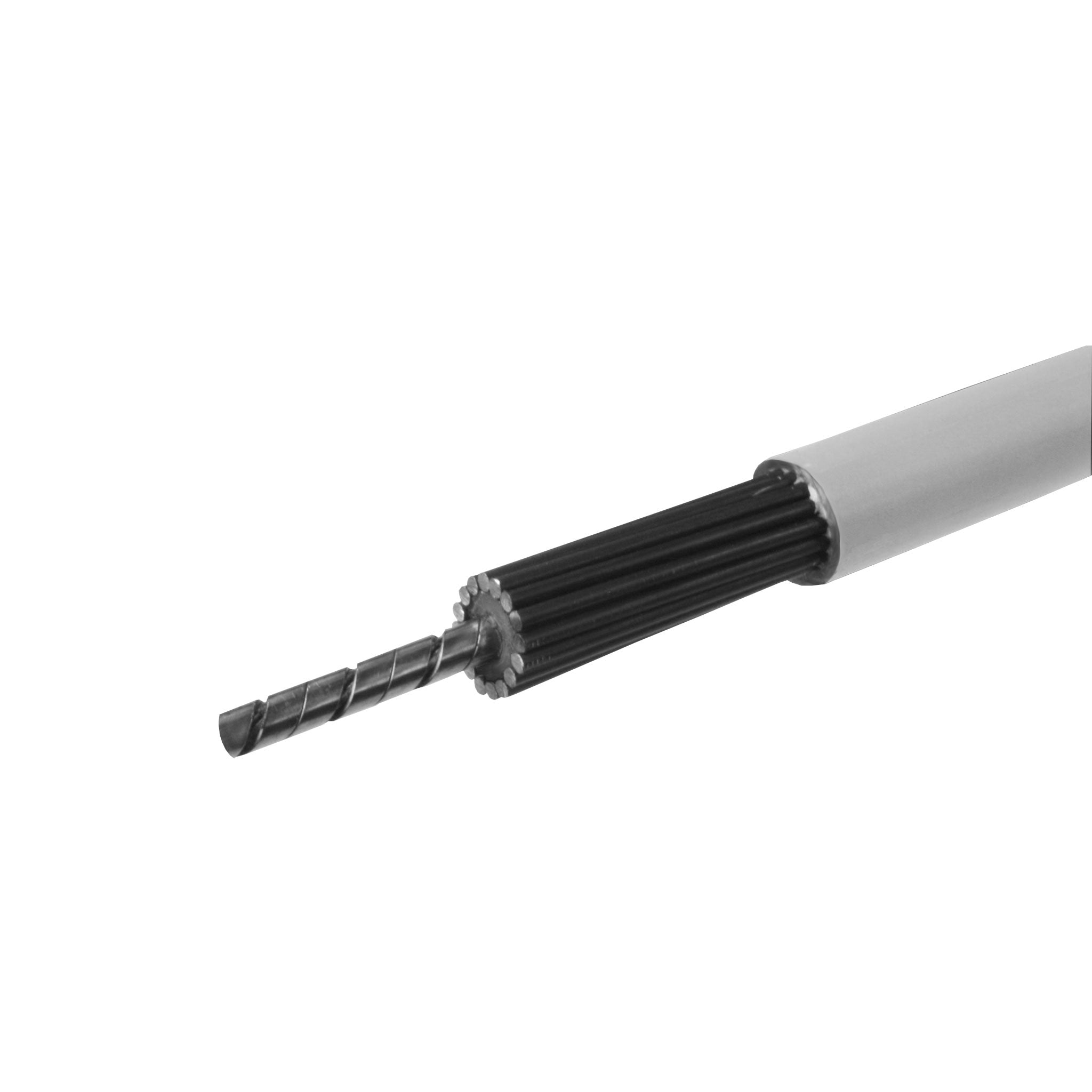

Silver Jacket Ultimate Cable Construction
Armored multi-strand core:
The unique flat winding around the Multi-Strand Stainless Steel core is part of the inner secret to the Silver Jacket Ultimate cable’s superior performance. The end result is a dependable and flexible zero-friction push/pull cable assembly.
Fitted with efficient dynamic seals and requiring very little effort; these lightweight cables have a full circle of reinforcement wires to protect and support the inner liner; influencing positive load transfer with minimal lost motion. Ideal for high performance, off road and marine push-pull cable applications.
This series of motion control cable can also be used in pull-pull cable installations.
Rated at 60# pull and 50# push, intermittent loads may exceed these ratings considerably without failure. These recommended load ratings of the Silver Jacket Control Cable reflect a balance between maximum load and reasonable cable life.
These aren’t a flimsy garden equipment control cable that will let you down when you need it the most ... these are heavy duty push pull cables suitable for many cable control applications. Including Marine, Mercruiser, Industrial Systems, Off Road, Race Cars, Performance Automotive, Home Built Aircraft, Agricultural, and Street Rods.
Backed by The Chassis Shop's Satisfaction Guarantee.
The Pro-werks Silver Jacket Cables are proudly Made in the USA.
Three Adjustable Push Pull Cable Types Available
Mounting Options:
- Clip Type (grooved housing each end)
Click image to learn more
- Bulkhead Type (7/16-20 NF threaded housing each end)
Click image to learn more
- Combo Type (7/16-20 NF threaded housing one end / grooved on the other)
Click image to learn more

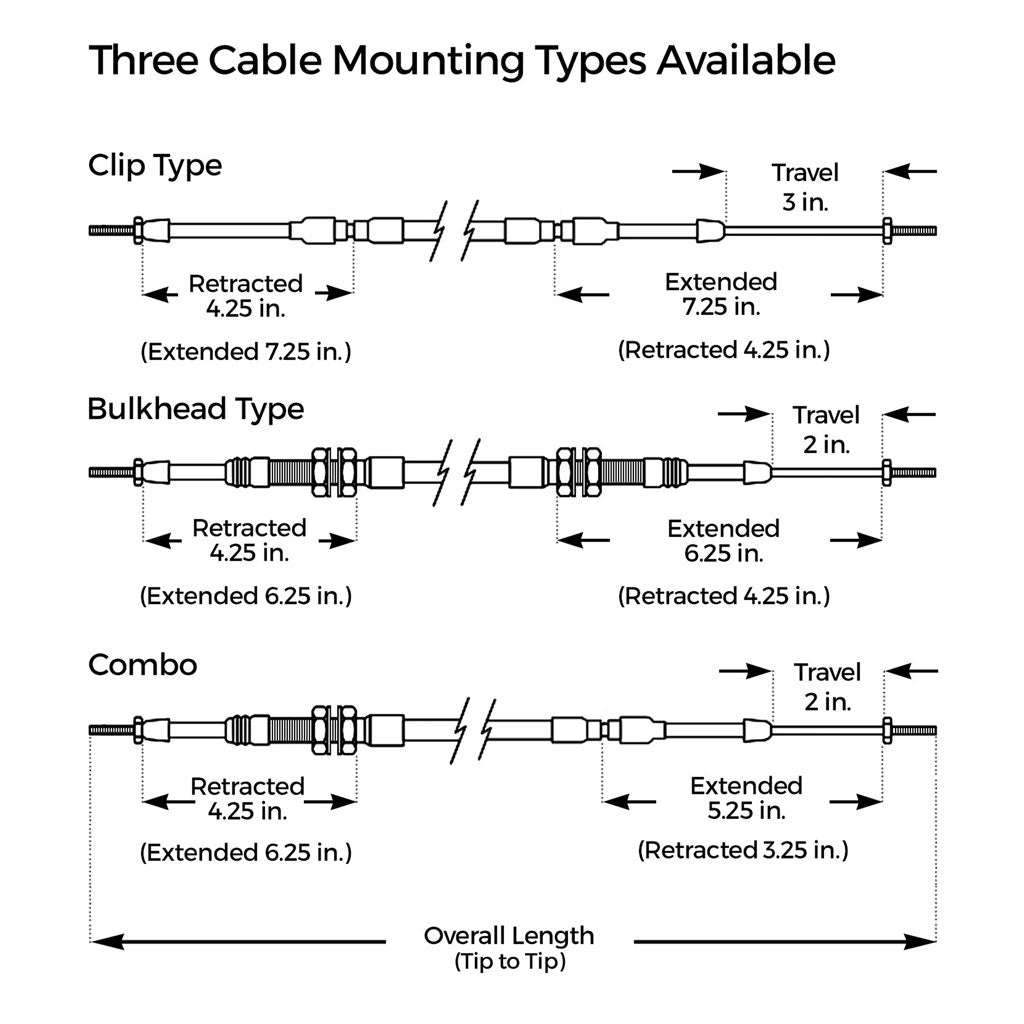

See diagram with mounting type choices and travel dimensions to confirm compatibility with your application.
Quality Push Pull Cable Hardware is a must
Make the connection with this complete offering of cable mounting hardware; cable connectors, cable end fittings, cable clamps, push pull cable ends and cable levers.
This is the good stuff; high quality specialty pull cable hardware - not available at your local hardware store. It's what you would expect from the leading push pull cable manufacturer.
Click image above to see the many mounting options available; including a complete selection of Cable Ends, Knobs, Handles and Levers.
Silver Jacket Push Pull Control Cables Popular Uses:
- Push Pull Throttle Cable
- Shutoff Control Valves
- B&M Shifter Cable
- Transmission Shift Cable
- Parachute Release
- Remote Battery Switches
- Universal Throttle Cable
- Hood Release Cable
- Choke Cable
- Parking Brake Cable
- Boat Throttle Cable
- Push Pull PTO Cable
- Emergency Brake Cable
- Boat Shift Cable
- Door and Hood Latches
- Homebuilt Aircraft Control Cables
Silver Jacket Cable Installation Tips (PDF)
Complete Your Cockpit
Silver Jacket cables work hand-in-hand with these related components from The Chassis Shop:
- Pedal Kit — Pro-werks dragster brake and throttle pedal assemblies
- Levers — Pro-werks billet aluminum control levers for cable-operated shutoff, brake, and safety systems
- Battery Disconnect — remote battery disconnect switches operated by push-pull cables
- Weld Tabs & Brackets — chassis tabs and brackets for cable clamp and mounting hardware attachment
Questions and Answers
How do I measure total cable length?
Do I need to incorporate travel limit stop?
How do I protect my cable from extreme exhaust heat?
Do I need to lubricate a Silver Jacket Cable?
Pro Tips
Improving Cable Longevity
"My pulling tractor has four supercharged engines and I can depend on 12 Silver Jacket cables to control them with ease."
– As shared with us at the PRI Show
"Wow! Silver Jacket cables are smooth as butter."
