4130N Chromoly Custom Six Point Cage Kit
We offer custom bending of our 4130 chromoly tubing.
Our minimum basic single bend cost is $50.00 per bend plus material.
Complex pieces requiring additional layout time will be charged accordingly.
Please allow 5-10 business days for scheduling.
Tube Bending Capabilities:
| TUBE DIA. |
BEND RADIUS |
MINIMUM WALL THICKNESS |
MINIMUM LEG LENGTH |
MAX. DEGREE OF BEND |
| 3/8" | 15/16" | .035" | 1-1/2" | 180 |
| 1/2" | 1-1/2" | .035" | 2" | 180 |
| 3/4" | 4" | .049" | 3" | 120 |
| 7/8" | 4" | .058" | 3" | 120 |
| 1" | 5-1/2" | .058" | 4-3/4" | 180 |
| 1-1/8" | 5-1/2" | .058" | 4-7/8" | 180 |
| 1-1/4" | 6" | .058" | 5" | 180 |
| 1-3/8" | 6" | .058" | 5" | 180 |
| 1-1/2" | 6" | .065" | 7" | 180 |
| 1-5/8" | 7" | .065" | 7-1/2" | 180 |
How degrees of bends are defined:
The degree of a bend may be measured with either a protractor or an angle finder.
Radius and Leg Lengths Defined:
The bend radius is measured on the "center line" of the tube. Tube radius bend result is determined by the combination of the capability of available tooling, and material being formed. The leg length is the straight portion, starting from the tangent point (where the bend starts).
For bend radius, maximum degree of bend, minimum leg length, and minimum wall thickness information, please refer to the "tube bending capabilities" chart above.
Custom Six Point Cage Kit:
Click the button below to fill out the form and submit your custom cage kit for review.

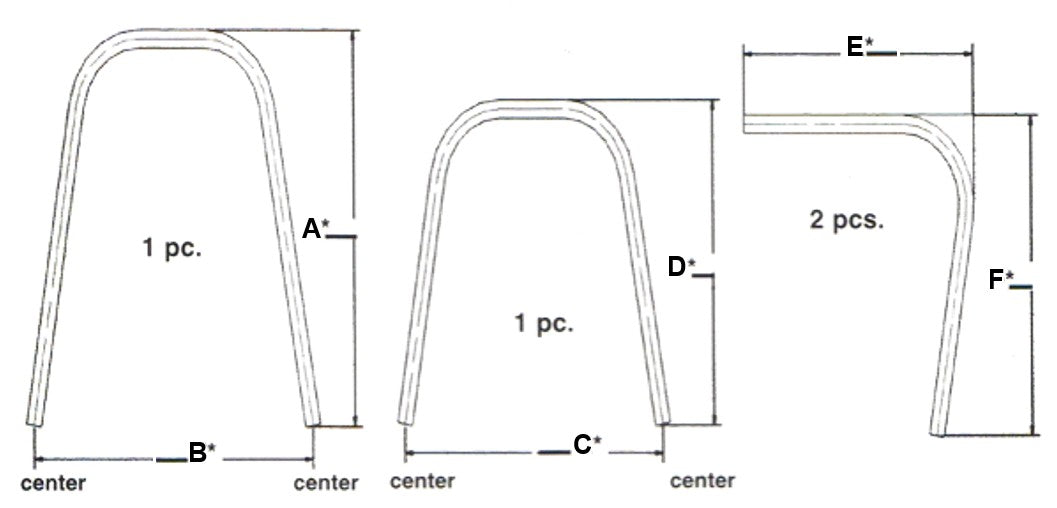

Front Hoop Intermediate Hoop Back Bar
