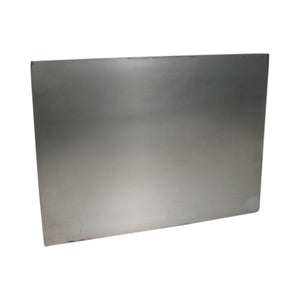

Chromoly Plate

Get the right size here.



Chromoly Plate
Size    Weight


.063" (1/16 in.) Thickness
9" x 12"    1.928    4130-116-9-12
18" x 36"    11.565    4130-116-18-36
18" x 72"    23.130    4130-116-18-72


.090" (3/32 in.) Thickness
9" x 12"    2.753    4130-332-9-12
18" x 36"    16.515    4130-332-18-36
18" x 72"    33.030    4130-332-18-72

.125" (1/8 in.) Thickness
9" x 12"    3.825    4130-18-9-12
18" x 36"    22.950    4130-18-18-36
18" x 72"    45.900    4130-18-18-72

.190" (3/16 in.) Thickness
9" x 12"    5.813    4130-316-9-12
18" x 36"    34.875    4130-316-18-36
18" x 72"    69.750    4130-316-18-72


.250" (1/4 in.) Thickness
9" x 12"    7.658    4130-14-9-12
18" x 36"    45.945    4130-14-18-36
18" x 72"    91.890    4130-14-18-72



Chromoly plate is aircraft 4130 condition N (normalized), spec AMS-6345-C. This material is perfect for fabricating high strength custom tabs and brackets.

It is widely used in aviation and racing because of it's strength, weld-ability and ease of fabrication. Available in a large selection of thicknesses, in several pre-cut sizes to meet your project size requirements.

Due to how plate is produced it is not perfectly flat. Edges are either sheared or plasma cut, the heat generated by cutting does create a thin layer of hardness. It is recommended to grind off the edge hardness before attempting to cut this material - this will help reduce the potential of prematurely dulling the teeth of common cutting tools.

Note: Cut tolerance on this material is typically + or - 1/4".


Welding should always be performed by a qualified welder.
