Stiletto Spindle Rebuild Kit
Everything you need
Includes all the necessary components to rebuild a set of Stiletto Spindles.

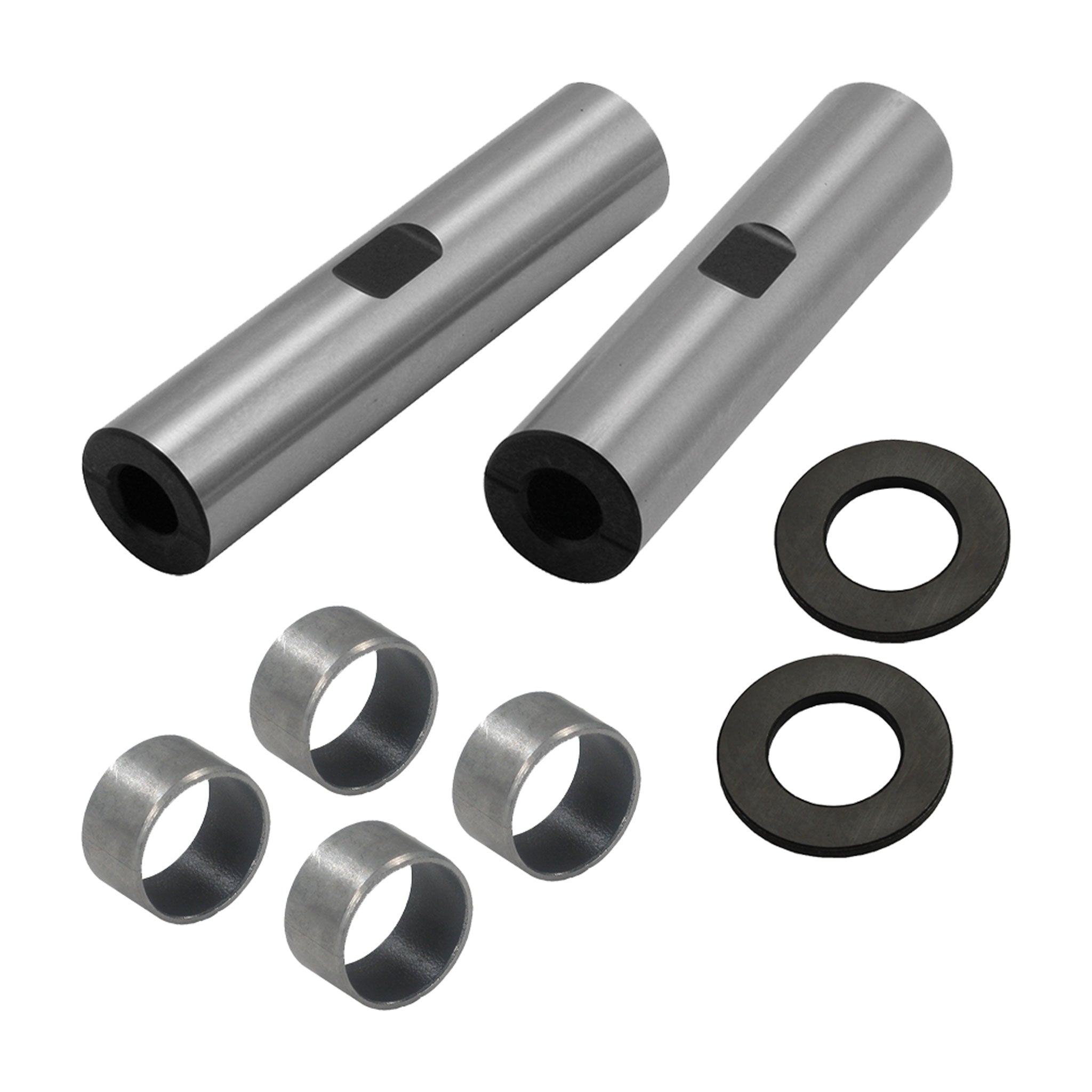

Includes:
(2) Stiletto Spindle King Pins, 3.00 ID, 0.687 Inch OD
(2) Stiletto Spindle Thrust Washers, 0.687 in. ID, 0.095 in. Thick
(4) Stiletto Spindle King Pin Bushings, 0.782 Inch OD, 0.687 Inch ID
Fits current Stiletto Spindles produced after 1997
The King Pins are hardened for maximum wear resistance and precision centerless ground. Additional features include rifle drilling to save weight, a set screw flat for positive locking, and an indexing groove for proper orientation during finish assembly.
This King Pin Bushings are a steel-backed bearing made from a proprietary low-friction composition of impregnated PTFE for smooth performance in dry conditions. Lube is recommended during initial assembly.
The Thrust Washers are made from a proprietary low-friction composition of impregnated PTFE for smooth performance in dry conditions. Precision ground on both contact surfaces. Lube is recommended during initial assembly.
