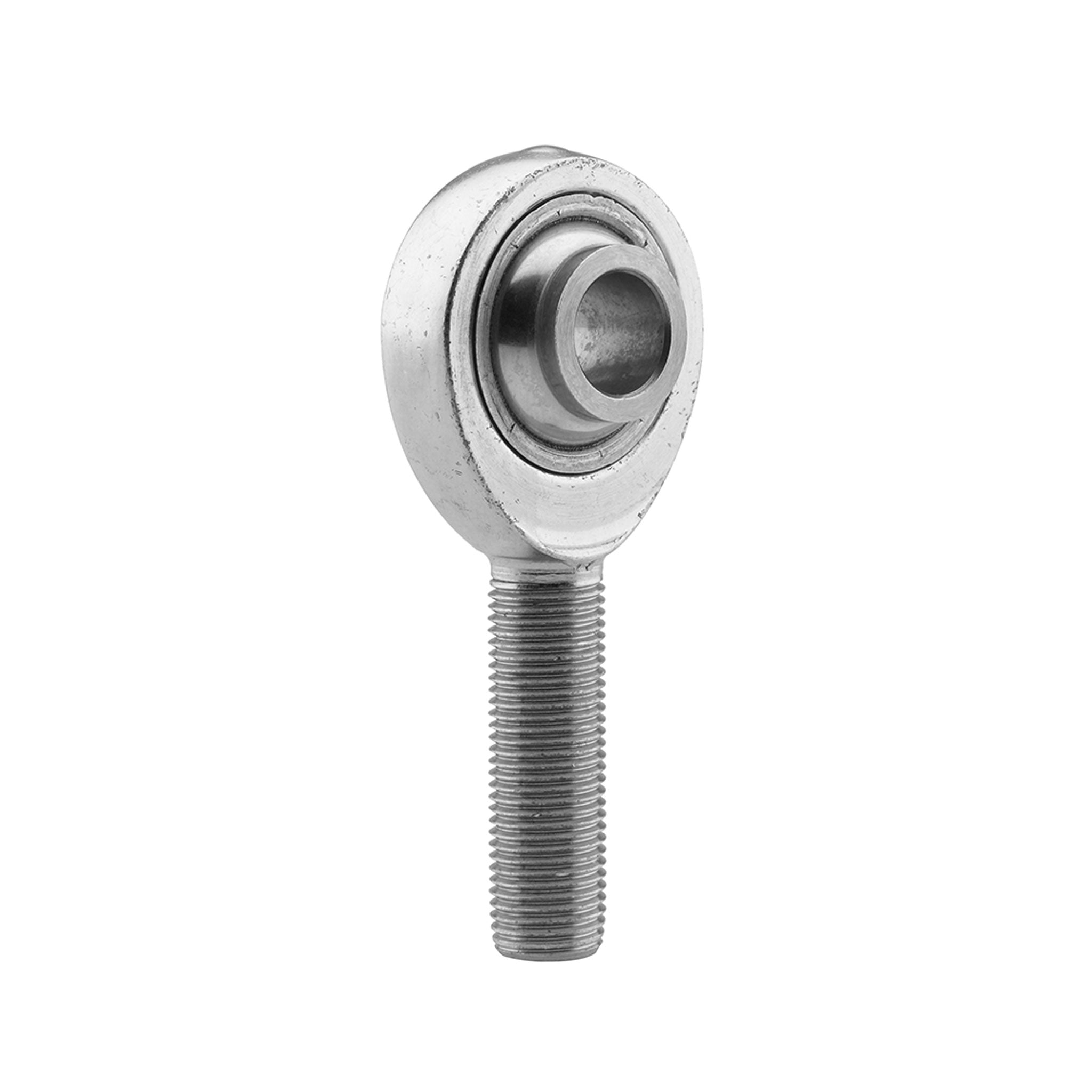

FK Bearing High Misalignment Rod End - Teflon Lined
*Ships for FREE*
Our Customers Also Bought
Specifications

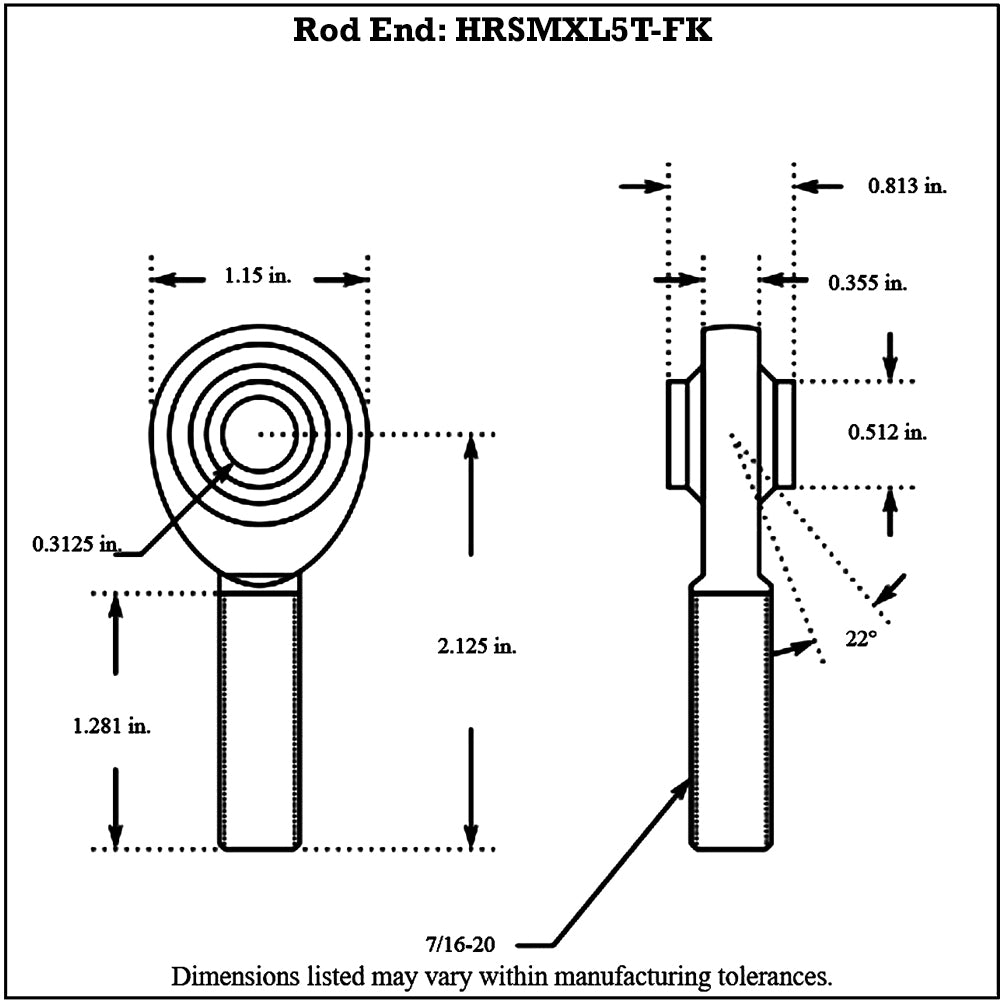

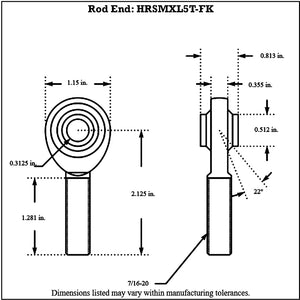

| Part Number | Thread | Hole | Ball Width | Misalignment | Radial Load Capacity |
|---|---|---|---|---|---|
| HRSMX5T-FK | 5/16-24 Right Hand | 5/16 in. | 13/16 in. | 22° | 11,781 lbs |
| HRSMXL5T-FK | 5/16-24 Left Hand | 5/16 in. | 13/16 in. | 22° | 11,781 lbs |
| HRSMX6T-FK | 3/8-24 Right Hand | 3/8 in. | 13/16 in. | 22° | 11,781 lbs |
| HRSMXL6T-FK | 3/8-24 Left Hand | 3/8 in. | 13/16 in. | 22° | 11,781 lbs |
| HRSMX7T-FK | 7/16-20 Right Hand | 7/16 in. | 7/8 in. | 21° | 17,105 lbs |
| HRSMXL7T-FK | 7/16-20 Left Hand | 7/16 in. | 7/8 in. | 21° | 17,105 lbs |
| HRSMX8T-FK | 1/2-20 Right Hand | 1/2 in. | 15/16 in. | 19° | 23,720 lbs |
| HRSMXL8T-FK | 1/2-20 Left Hand | 1/2 in. | 15/16 in. | 19° | 23,720 lbs |
| HRSMX10T-FK | 5/8-18 Right Hand | 5/8 in. | 1.200 in. | 19° | 32,067 lbs |
| HRSMXL10T-FK | 5/8-18 Left Hand | 5/8 in. | 1.200 in. | 19° | 32,067 lbs |
High Misalignment Chromoly Male Rod End (3pc Series)
These special high misalignment rod ends are based on the Heavy Duty Chromoly rod ends and feature large body and threaded shank with a special ball with shoulders. Three piece construction, with body, ball and race. This type of construction allows for the use of different metals for each component part. The body is manufactured out of 4130 steel alloy, which is heat treated, and zinc plated. Specifications for the race are heat treated alloy steel, zinc plated, and chromate treated materials. The special ball is made from 52100 steel (AMS-7440) and is heat treated, and hard chrome plated and also includes built in shoulders, providing additional misalignment without the use of spacers. The durable Teflon liner provides additional wear resistance.
What is Radial Static Load Capacity?

These loads are based upon the minimal mechanical properties of the design configuration of the stressed areas. The Operation Load Capacity of FK Bearing rod ends is based upon the Radial Static Load Rating. Appropriate safety factors should be utilized with the application. Full rotation assemblies up to 100 rpm should not exceed 10% of the radial static load.
What is Axial Load Capacity?

Axial static load is the force that is applied through the bore of the ball. Maximum axial static load capacity is recommended at 15% of the radial static load for FK Bearing two piece rod ends, 10% for three piece rod ends.
What is Bearing Misalignment?

A rod end or spherical bearings ability to mis-align is measured by the degree of angle the ball can accommodate without interference.
