FK Bearing Female Mild Steel Rod End
*Ships for FREE*
FREE Shipping eligible on all plate 18 in. x 18 in. or smaller.
Take advantage of our discounted shipping rates in checkout for sizes over 18 in. x 18 in.
Our Customers Also Bought
Specifications
| Part Number | Thread | Hole Diameter | Ball Width | Misalignment | Radial Load Capacity |
|---|---|---|---|---|---|
| CF3-FK | 10-32 Right Hand | 3/16 in. | 0.312 in. | 20 | 2,079 lbs |

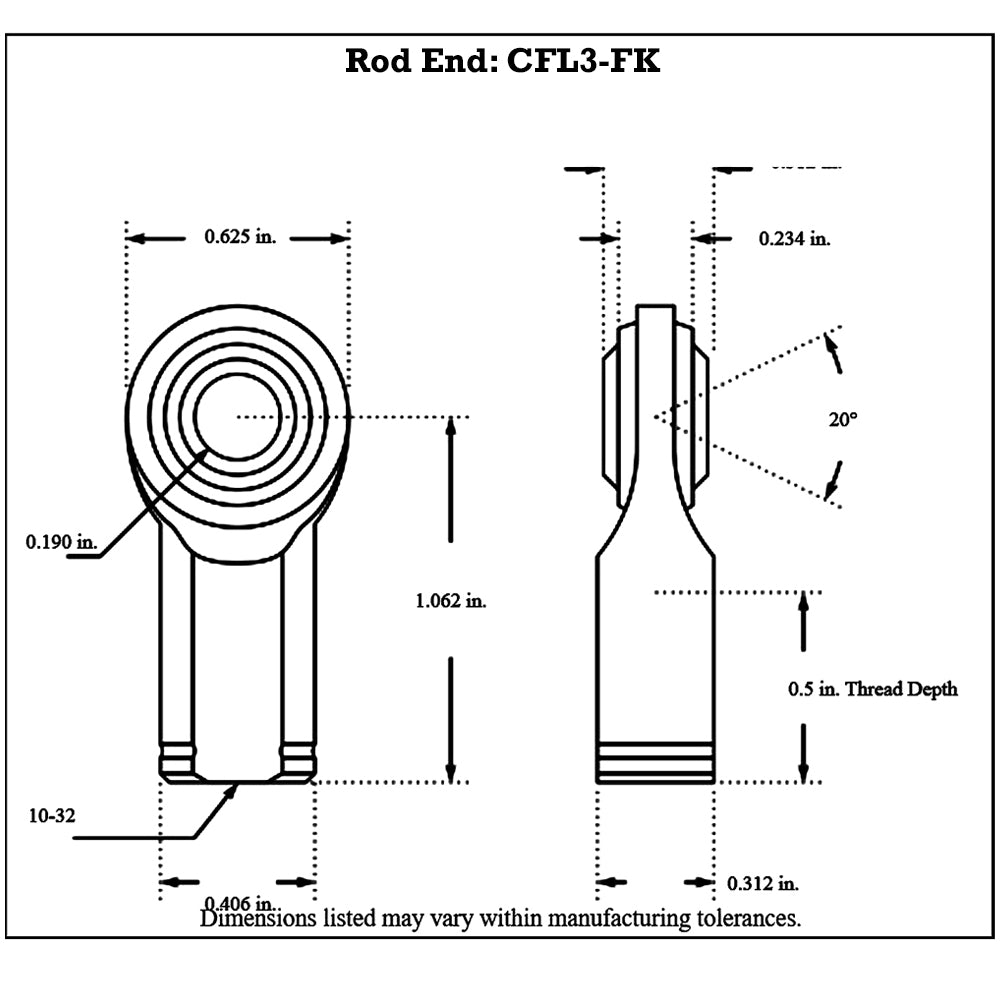

| CFL3-FK | 10-32 Left Hand | 3/16 in. | 0.312 in. | 20 | 2,079 lbs |
| CF4-FK | 1/4-28 Right Hand | 1/4 in. | 0.375 in. | 27 | 3,208 lbs |

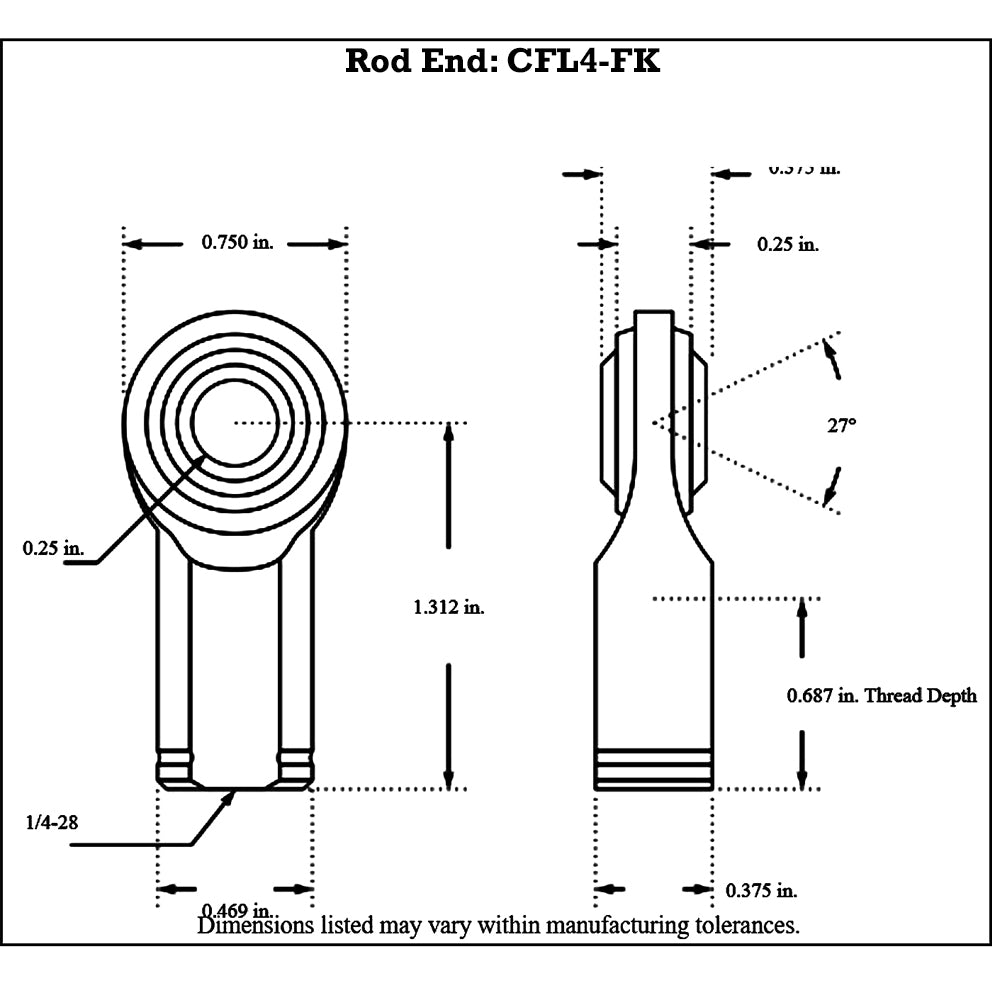

| CFL4-FK | 1/4-28 Left Hand | 1/4 in. | 0.375 in. | 27 | 3,208 lbs |
| CF5-FK | 5/16-24 Right Hand | 5/16 in. | 0.437 in. | 22 | 3,824 lbs |
| CFL5-FK | 5/16-24 Left Hand | 5/16 in. | 0.437 in. | 22 | 3,824 lbs |
| CF6-FK | 3/8-24 Right Hand | 3/8 in. | 0.500 in. | 22 | 5,087 lbs |
| CFL6-FK | 3/8-24 Left Hand | 3/8 in. | 0.500 in. | 22 | 5,087 lbs |
| CF7-FK | 7/16-20 Right Hand | 7/16 in. | 0.562 in. | 21 | 6,385 lbs |
| CFL7-FK | 7/16-20 Left Hand | 7/16 in. | 0.562 in. | 21 | 6,385 lbs |
| CF8-FK | 1/2-20 Right Hand | 1/2 in. | 0.625 in. | 20 | 9,096 lbs |
| CFL8-FK | 1/2-20 Left Hand | 1/2 in. | 0.625 in. | 20 | 9,096 lbs |
| CF10-FK | 5/8-18 Right Hand | 5/8 in. | 0.750 in. | 26 | 9,713 lbs |
| CFL10-FK | 5/8-18 Left Hand | 5/8 in. | 0.750 in. | 26 | 9,713 lbs |
| CF12-FK | 3/4-16 Right Hand | 3/4 in. | 0.875 in. | 24 | 14,207 lbs |
| CFL12-FK | 3/4-16 Left Hand | 3/4 in. | 0.875 in. | 24 | 14,207 lbs |

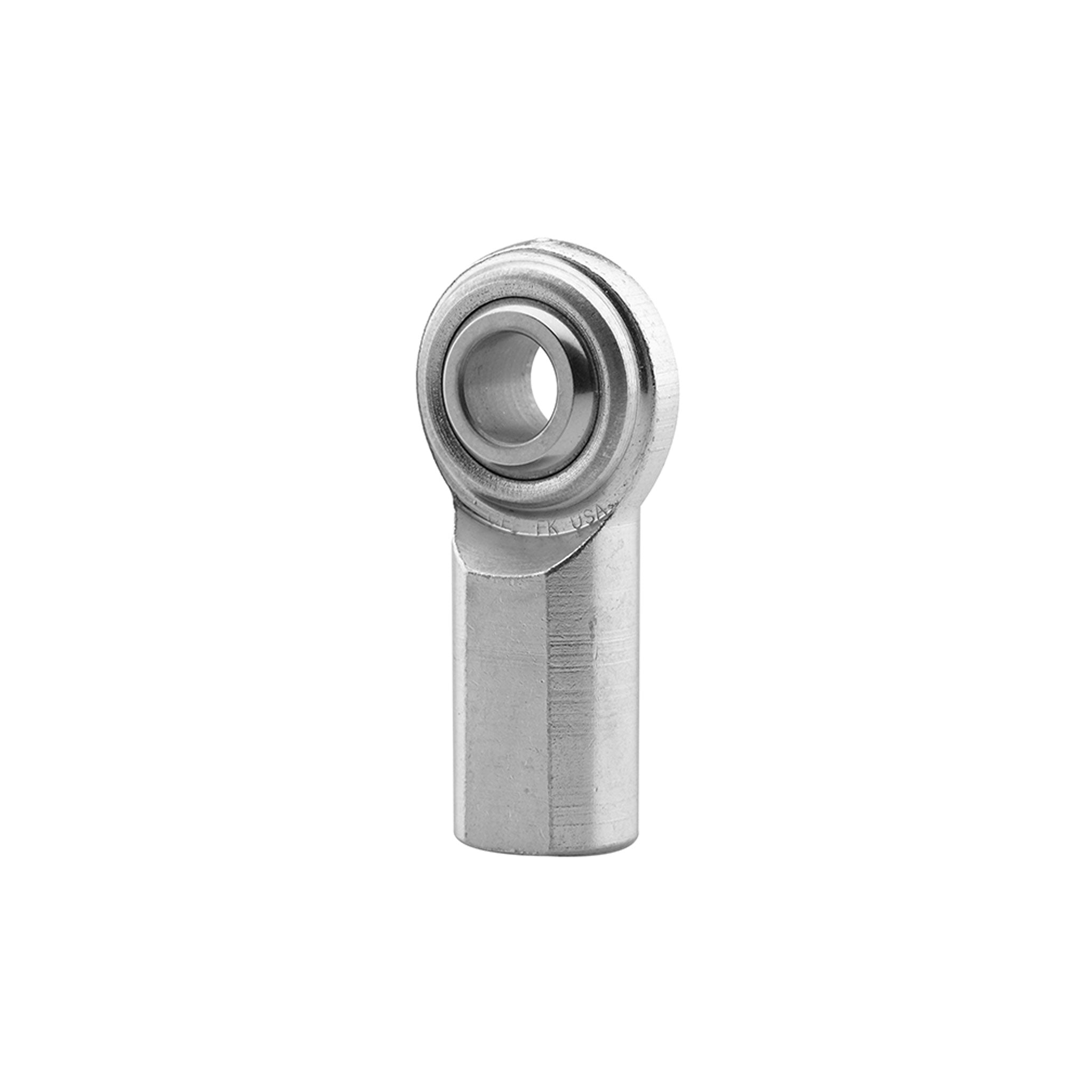

Mild Steel Female Rod End (Two Piece Series)
This series of rod ends consists of a low carbon steel body (zinc plated) and Alloy steel ball, heat treated and hard chrome plated. This construction allows the rod end body to carry a greater static load and offers greater misalignment capabilities.
What is Radial Static Load Capacity?

These loads are based upon the minimal mechanical properties of the design configuration of the stressed areas. The Operation Load Capacity of FK Bearing rod ends is based upon the Radial Static Load Rating. Appropriate safety factors should be utilized with the application. Full rotation assemblies up to 100 rpm should not exceed 10% of the radial static load.
What is Axial Load Capacity?

Axial static load is the force that is applied through the bore of the ball. Maximum axial static load capacity is recommended at 15% of the radial static load for FK Bearing two piece rod ends, 10% for three piece rod ends.
What is Bearing Misalignment?

A rod end or spherical bearings ability to mis-align is measured by the degree of angle the ball can accommodate without interference.
