Made in the USA

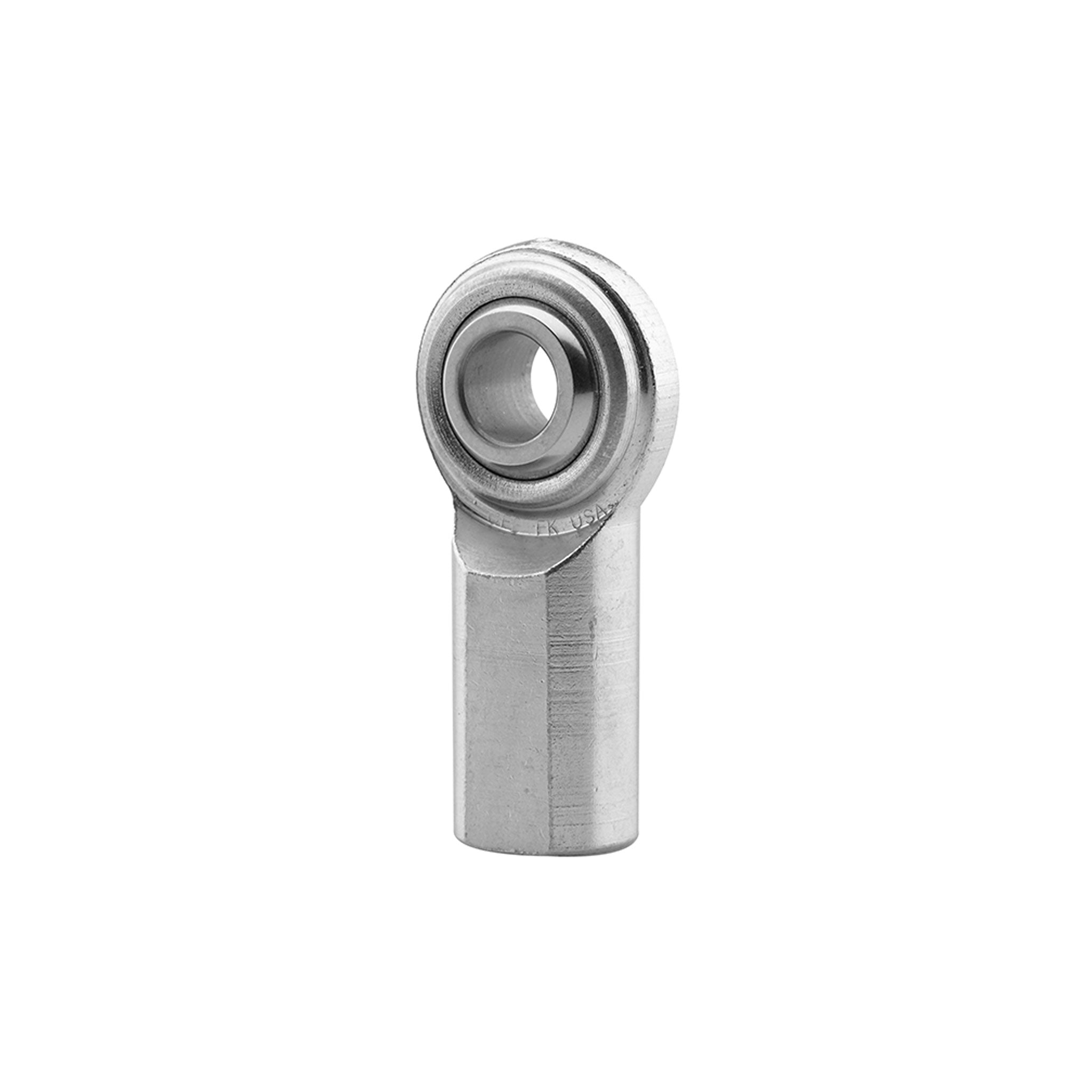

FK Bearing Female Mild Steel Rod End

Sale price $4.99 USD

*Ships for FREE*

Part # CFL6-FK
Select Thread Direction
Select Size

FREE Shipping eligible on all plate 18 in. x 18 in. or smaller.

Take advantage of our discounted shipping rates in checkout for sizes over 18 in. x 18 in.

  • 100% Satisfaction Guarantee
  • Live Expert Tech Support
  • Free U.S. Shipping Available
  • 30-Day Money-Back Guarantee
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks Grade 5 Jam Nuts Plated Steel, Left & Right Hand

Pro-werks Seals It Rod End Washers, Pair

Pro-werks 1-1/8” OD X .058” (1.009" ID) Tube Size, Chromoly Steel 4130N Round Tube Adapter

Pro-werks Rod End Safety Washers, Zinc Plated

Pro-werks Mild Steel Clevis Link Bracket

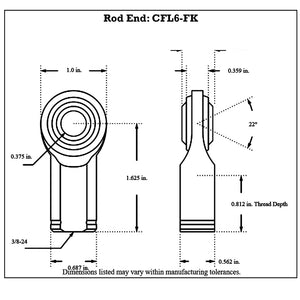

Mild Steel Female Rod End (Two Piece Series)

This series of rod ends consists of a low carbon steel body (zinc plated) and Alloy steel ball, heat treated and hard chrome plated. This construction allows the rod end body to carry a greater static load and offers greater misalignment capabilities.


What is Radial Static Load Capacity?

Line drawing of a rod end with concentric spherical bearing races and a straight threaded shank, arrow marking the bore axis; no dimensions labeled

These loads are based upon the minimal mechanical properties of the design configuration of the stressed areas. The Operation Load Capacity of FK Bearing rod ends is based upon the Radial Static Load Rating. Appropriate safety factors should be utilized with the application. Full rotation assemblies up to 100 rpm should not exceed 10% of the radial static load.


What is Axial Load Capacity?

Cross-section drawing of a rod end with a spherical bearing ball and race in a housing on a straight shank, with a dashed centerline arrow through the ball bore

Axial static load is the force that is applied through the bore of the ball. Maximum axial static load capacity is recommended at 15% of the radial static load for FK Bearing two piece rod ends, 10% for three piece rod ends.


What is Bearing Misalignment?

Line drawing of a clevis bracket with a bolt through it, hex head one side and hex nut the other, capturing a threaded rod end

A rod end or spherical bearings ability to mis-align is measured by the degree of angle the ball can accommodate without interference.
