Pro-werks Billet Aluminum Switch Panel Button Mount

Sale price $109.99 USD
Part # C42-500-0-R
Select Color
Select Hole In Top
Select Face Plate

See dimensions and diagrams for each size.

  • 100% Satisfaction Guarantee
  • Live Expert Tech Support
  • Free U.S. Shipping Available
  • 30-Day Money-Back Guarantee
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks Billet Aluminum Butterfly Steering Wheel

Pro-werks 4 Bolt Quick Release Steering Hub, 42.1 SFI Certified

Pro-werks Self-Lubricating Bearings, Pair

12:1 Ratio, Stiletto Gen5 Small Box Dragster Rack and Pinion

Note: This product listing is for the Top and Face Plate only, (with stainless steel mounting hardware). The Pro-werks Butterfly Steering Wheel, buttons, switches and valves will need to be purchased separately to create the combination you desire.

The installed images shown here are to create a better understanding of the combination when it is assembled.



Overview

This stylish assembly is designed to fit the Pro-werks Butterfly Steering wheel and is precision CNC machined of billet aluminum. Consistent with all Pro-werks products, the machining and finishes are exceptional. This is a machined billet masterpiece with no rough corn cob surfaces.

This button mount may be outfitted with switches, buttons, control valves, small gauges and indicator lights. If you are using the popular Biondo Double-O button switch, you'll be pleased that we've designed this assembly to hide the bulky switch portion out of sight.

Backed by The Chassis Shop's Satisfaction Guarantee.

Two Pro-Werks butterfly-style steering wheels side by side: one silver with black grips and twin red push buttons, one black with blue grips

Button holes are positioned in optimal locations for driver accessibility and lightening fast reaction speed. The face plate edge has a full radius to eliminate sharp corners that could injure hands; a safety design feature carried over from with the Pro-werks Butterfly Steering Wheel.



Three aluminum steering wheels with black, red and blue finger grips, labeled Undrilled, Two Holes and Three Holes

Available with 5/8" diameter holes, or no holes the Top and Face Plate, enabling you to outfit as needed for your vehicle. Both the face plate and the top have adequate surface area for logos, labeling of functions or custom painted details if desired.

Polished metal grab-handle brackets with black finger-grooved grips, shown in two versions labeled No Top Hole and Top Hole


Two switch panels can be installed for even more mounting options:

Butterfly wheel with brushed aluminum center plates, bolt-on grip panels and black contoured hand grips, three-quarter view

In a true "fighter jet" fashion, we've exercised extensive weight reduction on the back of the face plate and bottom side of the top. The final result tips the scale under 6.5 ounces - a very lightweight and attractive billet aluminum unit.

The underside of the top plate also features four 10-24 NC threaded bosses to conveniently secure wiring and air lines for a clean packaged installation.

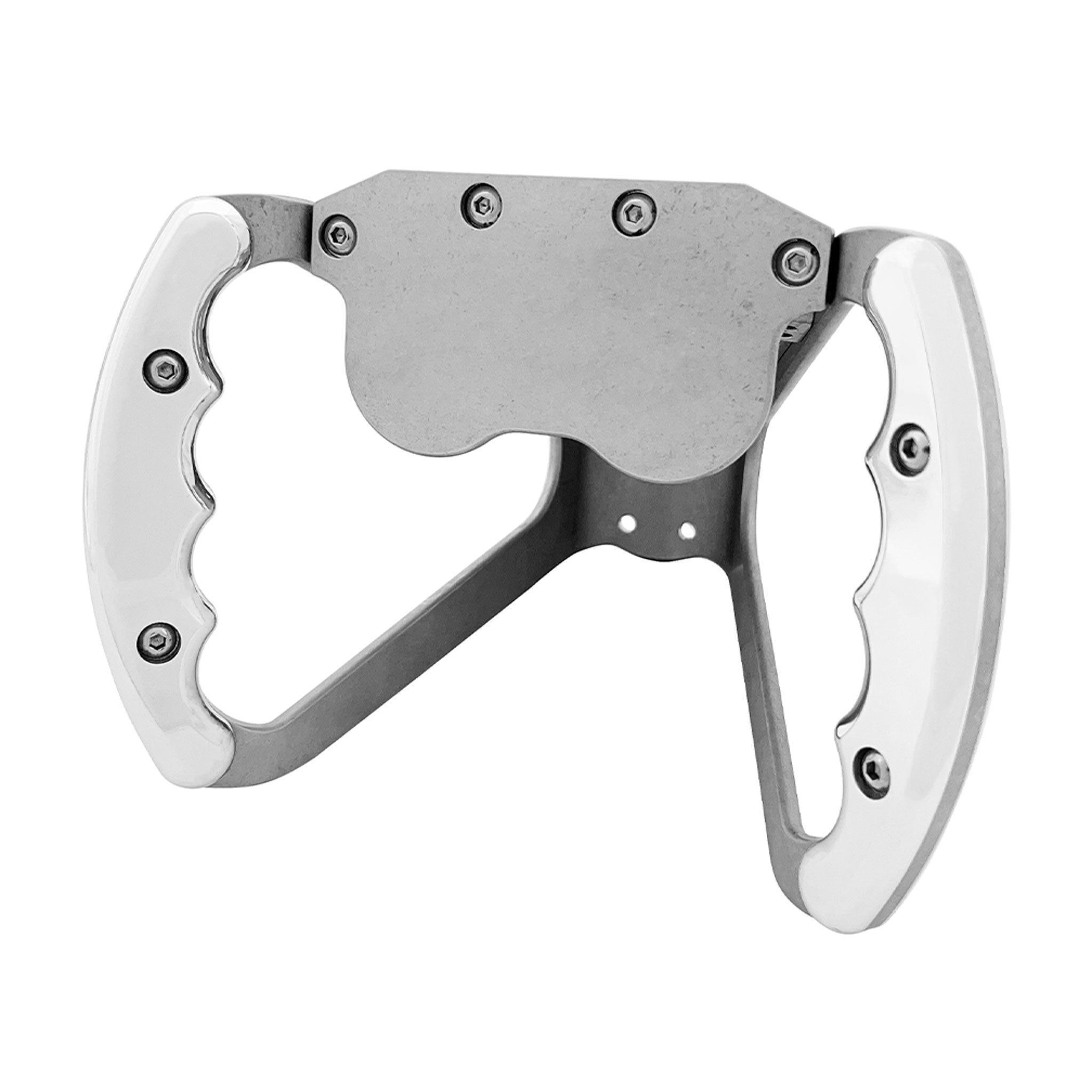

Polished billet aluminum switch panel top and face plate shown installed on a Pro-Werks butterfly wheel frame, front view

ANOTHER BONUS:  Unless instructed otherwise, when you purchase the Switch Panel with the Butterfly Steering Wheel on the same order, the steering wheel base will be factory drilled and button holder installed for no additional charge.
