Pro-werks AN Thread Weld Bung

Sale price $10.99 USD
Part # C73-630
Select Type
Select Material
Select Thread

  • 100% Satisfaction Guarantee
  • Live Expert Tech Support
  • Free U.S. Shipping Available
  • 30-Day Money-Back Guarantee
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks NPT Female Weld Bung

Pro-werks Easy Turn Filler Cap with Aluminum Bolt-On Bung

Pro-werks Easy Turn Filler Cap with Aluminum Weld Bung

Get the best Bung for your Buck!

Pro-Werks Weld Plumbing Bungs are available in weld-able 6061-T6 Aluminum or Mild Steel, produced on machining centers responsible for so many of our precision parts. Available in both Male and Female versions.

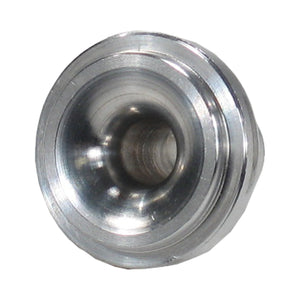

The Pro-werks Male weld bungs feature a contoured inlet for maximum flow - precision CNC machined and available in your choice of 6061-T6 Aluminum or Mild steel.

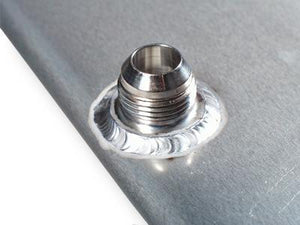

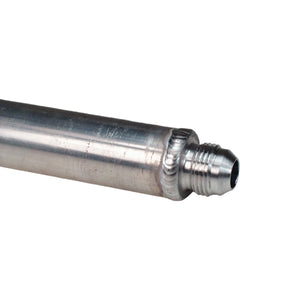

You will appreciate the stepped shoulder at the base of the bung, it serves as a positioning locator. This design feature holds the bung in place while welding in a hole of a flat surface, or in the end of tubing. Ample cross section in the weld land also helps to reduce warping during welding.



Contoured for Optimum Flow

Four polished aluminum weld in bungs in varying sizes, one with a curved notched base shaped to sit on tubing

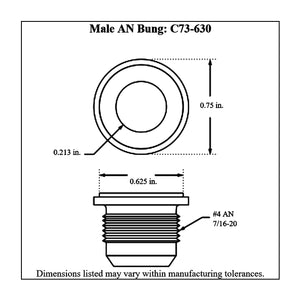

Male Weld Bung Specifications

-4 AN Male Bung
3/4 in. diameter, also fits tube 3/4 in. diameter x 0.058 in. thick

-6 AN Male Bung
7/8 in. diameter, also fits tube 7/8 in. diameter x 0.058 in. thick

-8 AN Male Bung
1 in. diameter, also fits tube 1 in. diameter 0.058 in. thick

-10 AN Male Bung
1-1/8 in. diameter, also fits tube 1-1/8 in. diameter 0.058 in. thick

-12 AN Male Bung
1-3/8 in. diameter, also fits tube 1-3/8 in. diameter 0.058 in. thick

-16 AN Male Bung
1-5/8 in. diameter, also fits tube 1-5/8 in. diameter 0.058 in. thick



Female Weld Bung Specifications

-4 AN Female Bung
7/16-20 Thread
(Steel - 3/4 in. OD)

-6 AN Female Bung
9/16-18 Thread
(Steel - 7/8 in. OD)

-8 AN Female Bung
3/4-16 Thread
(Steel - 1-1/8 in. OD)

-10 AN Female Bung
7/8-14 Thread
(Steel - 1-1/4 in. OD)

-12 AN Female Bung
1-1/16 -12 Thread
(Steel - 1-1/2 in. OD)

-16 AN Female Bung
1-5/16-12 Thread
(Steel - 1-3/4 in. OD)



Popular AN weld bung uses:

  • Fuel tanks
  • Dry Sump tanks
  • Valve cover venting
  • Oil pans



Make things easy by using the Best bungs available – by Pro-werks.

Click here to see Pro-werks Fill Cap Assemblies

Note: Welding should always be performed by a qualified welder.
