Pro-werks Aluminum Doubler Plates, Pack of 10

Sale price $14.99 USD
Part # C73-536-10
Select Style

• SAVE 5% on 5 or more Buttons, Tabs, Springs or Doublers
• SAVE 10% on 10 or more Buttons, Tabs, Springs or Doublers
• Mix-N-Match any Button, Tab, Spring or Doubler Packs of 10 to save

Discount will appear in cart.

  • Satisfaction Guaranteed
  • Live Expert Tech Support
  • Secure Checkout
  • Free Shipping & Easy Returns
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks Quarter-Turn Dzus Buttons, Pack of 10

Pro-werks Dzus Fastener Springs, Pack of 10

Pro-werks Weld-on Dzus Tabs, Pack of 10

Pro-werks Aluminum Rivets, 1/8 in. Diameter, 100 Pack

Pro-werks Panel Fastener Transfer Punch

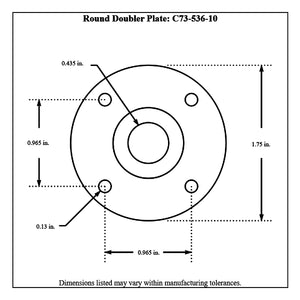

Part C73-536-10

1.75 in. Diameter
0.040 in. Thick
0.965 in. Rivet Hole Spacing
0.435 in. Center Hole Diameter

Part C73-535-10

1.5 in. X 1.5 in. Square
0.040 in. Thick
0.965 in. Rivet Hole Spacing
0.435 in. Center Hold Diameter

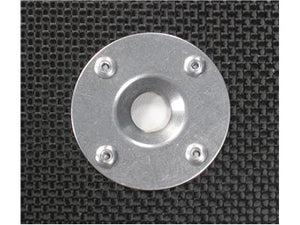

Dimpled for Flat Head buttons

Aluminum construction with Satin finish

Sold in a Pack of 10



Add Strength to your Panel - Prevent Chafing.

Pro-werks Doubler plates are good idea for new construction, and often used to repair worn panels if needed.

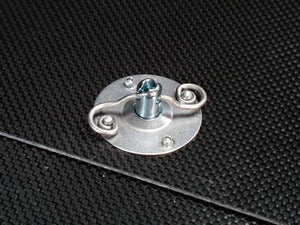

These aluminum plates measure 0.040" thick, and are designed to accept the Flat Head Style Quarter Turn Dzus type buttons when used on the surface of a panel as a wear plate.

May also be used with either the Flat Head or Dome Head style buttons when a inner panel spring reinforcement is needed on the backside (in panel to panel installations).

Easily installed by riveting on location for increased strength to fiberglass, carbon fiber, magnesium and aluminum panels.

Rivet holes measure 1/8" diameter, the center hole measures 0.435" diameter. The rivet hole spacing on both shapes is 1 3/8" (accepts the C73-525-10 springs).
