Pro-werks Bolt-On Aluminum Filler Cap Bung
Our Customers Also Bought
Bolt-On Fill Cap Bung Specifications

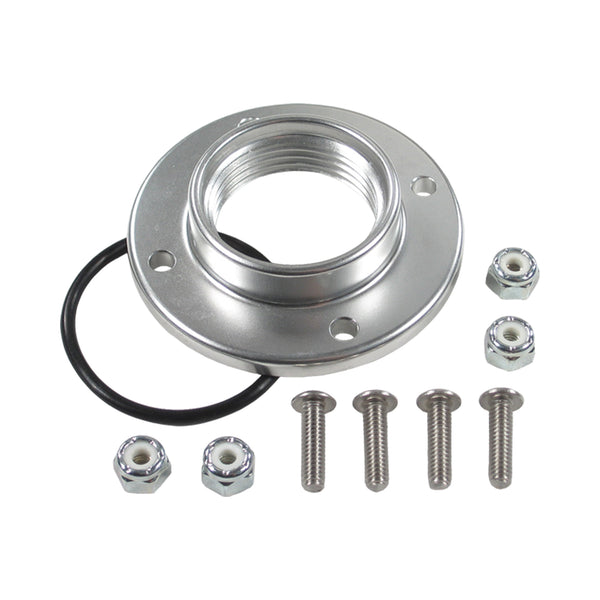

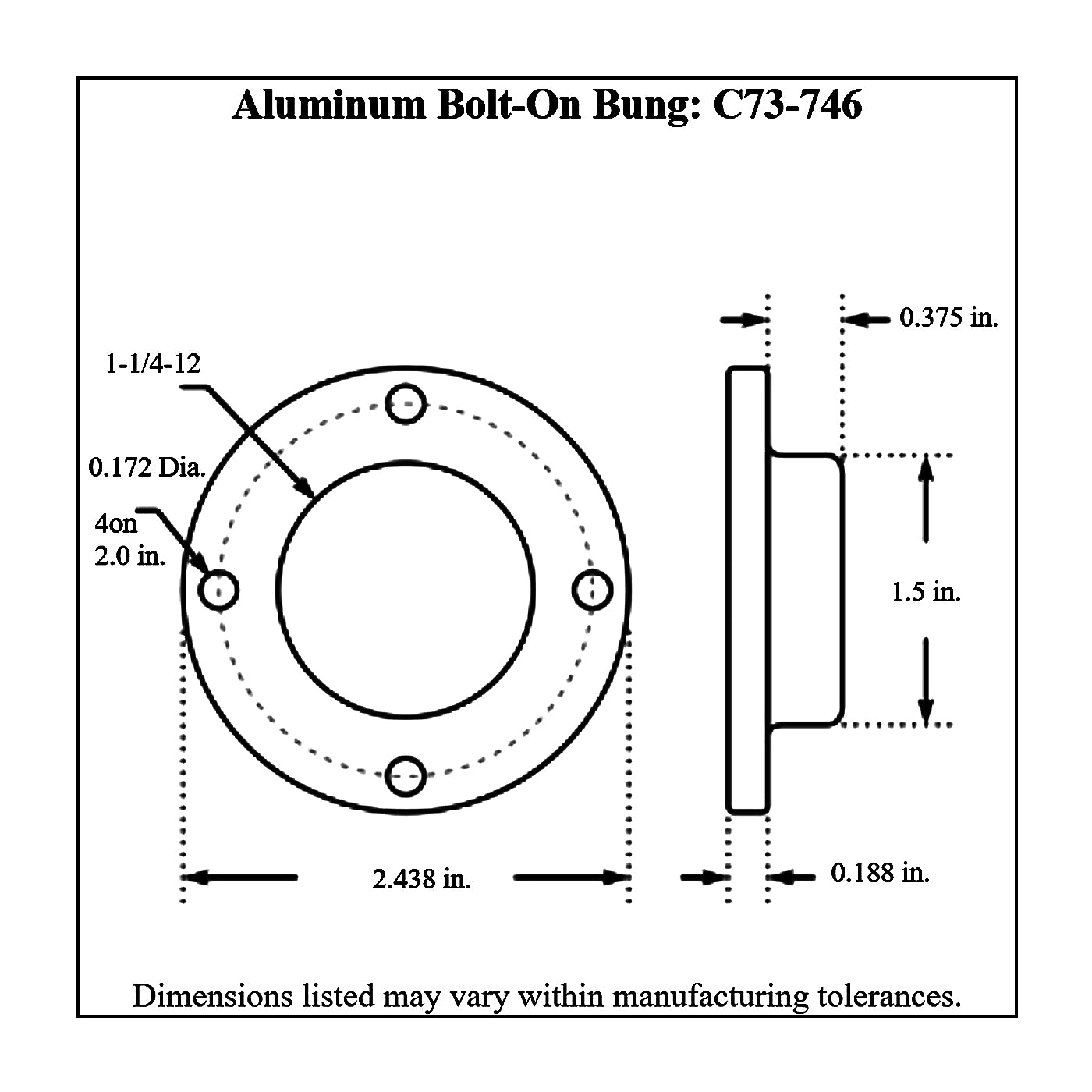

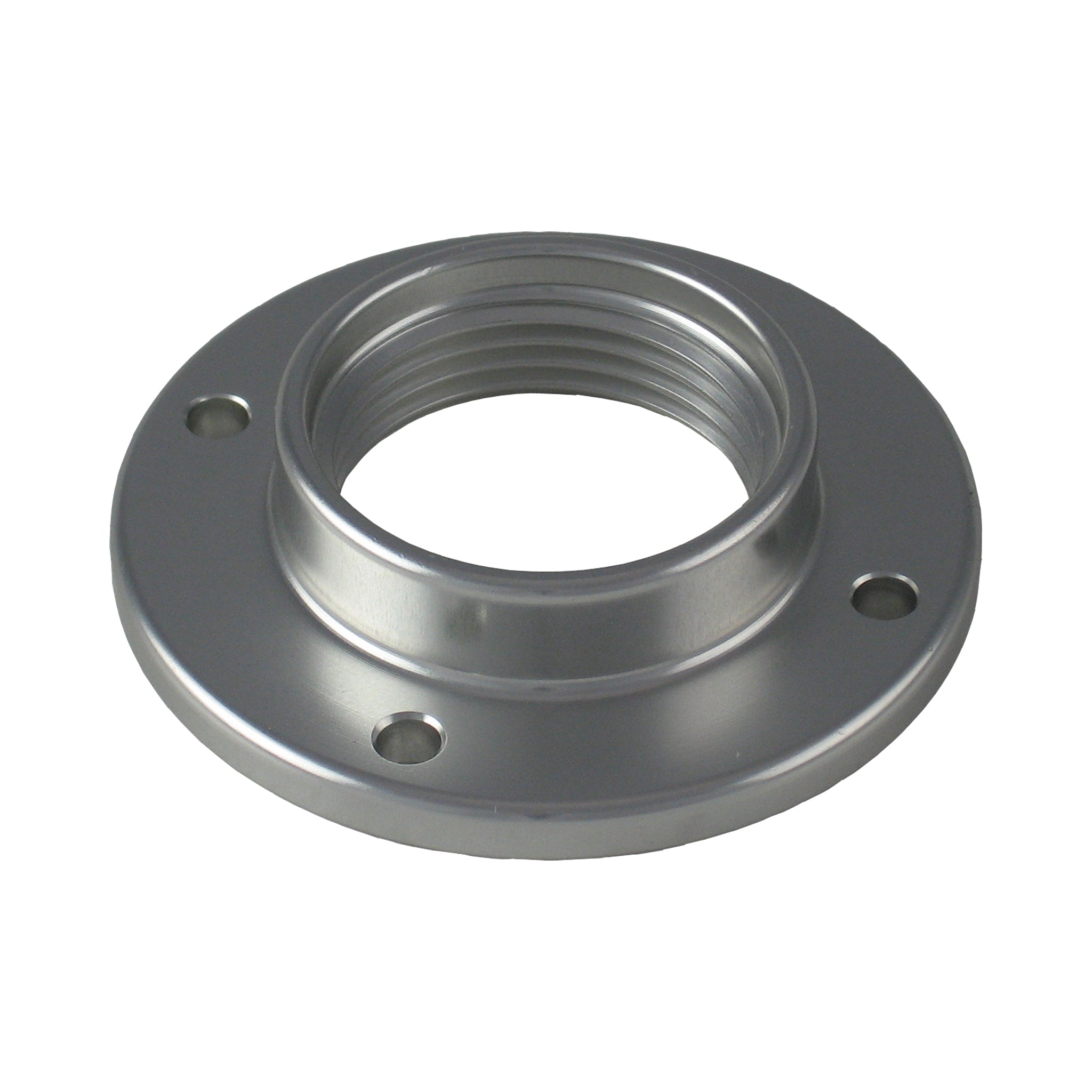

1-5/8 Inch Aluminum Bolt-On Bung
1-1/4-12 Straight Thread
4 on 2 in. Bolt Circle
9/16 in. Bung Height
(Replacement base O-Ring is C73-748)

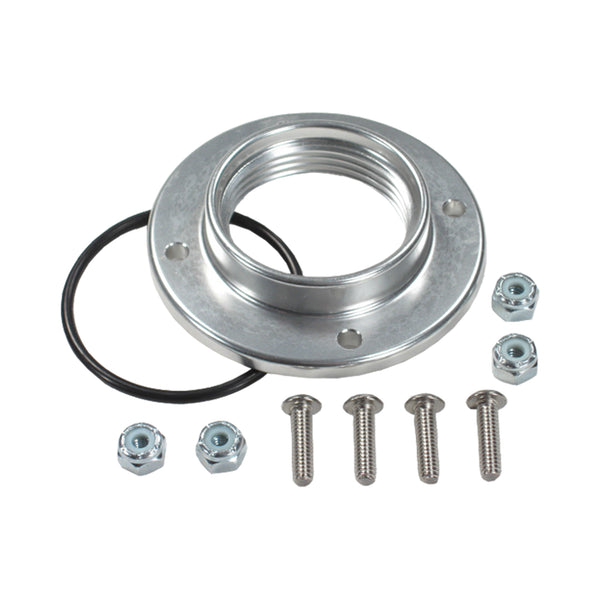

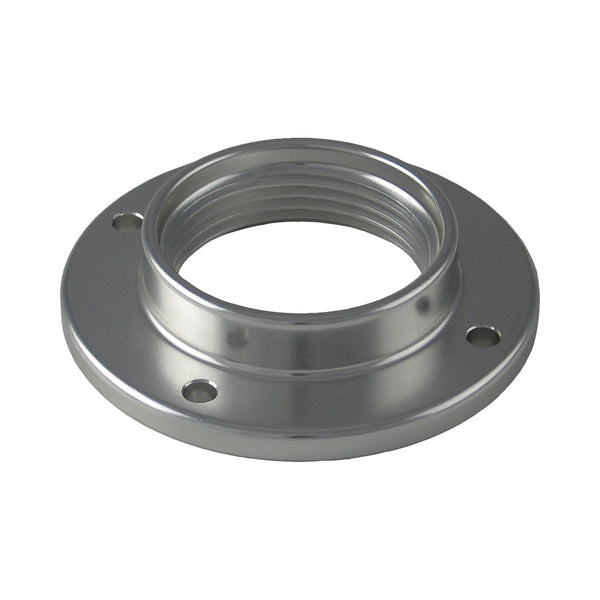

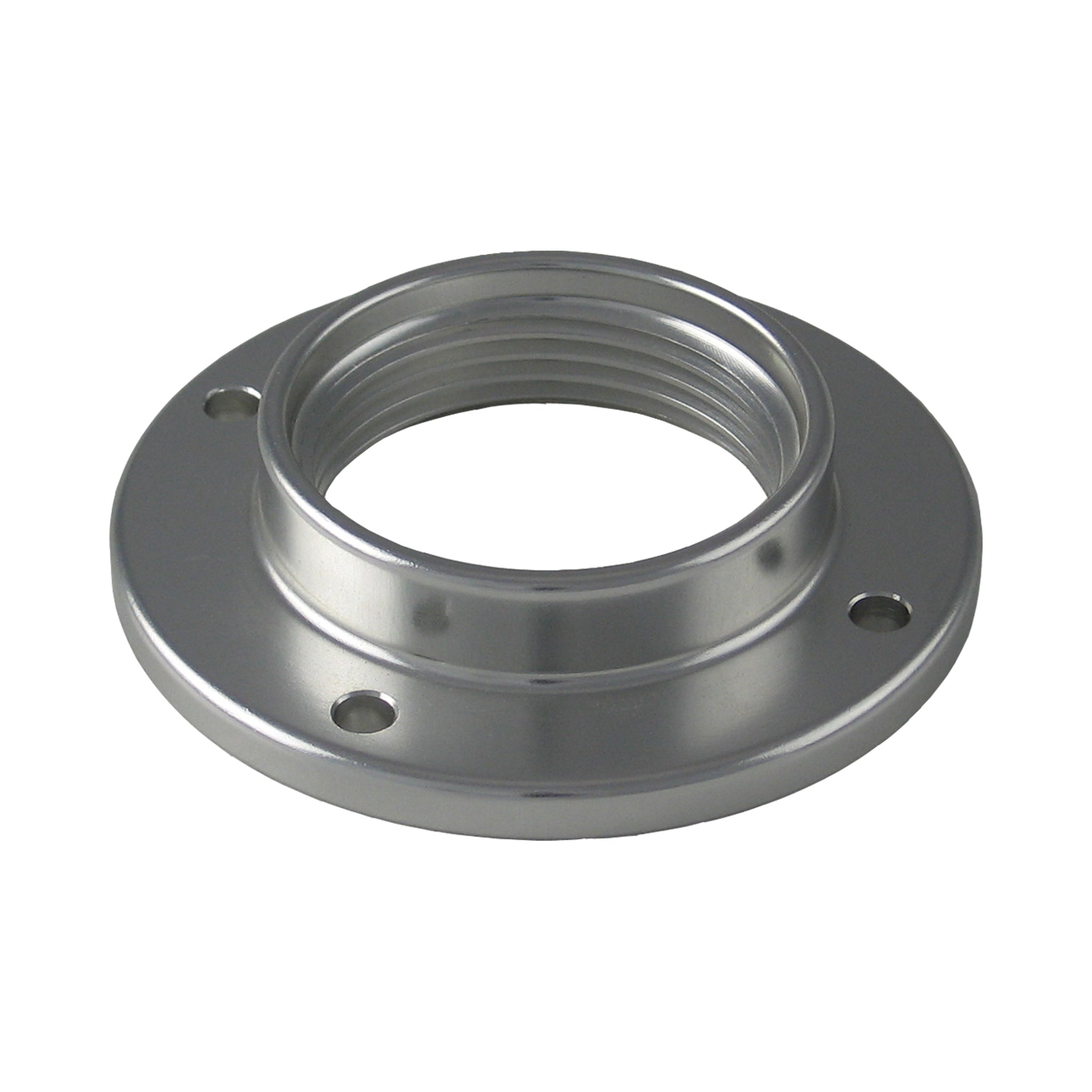

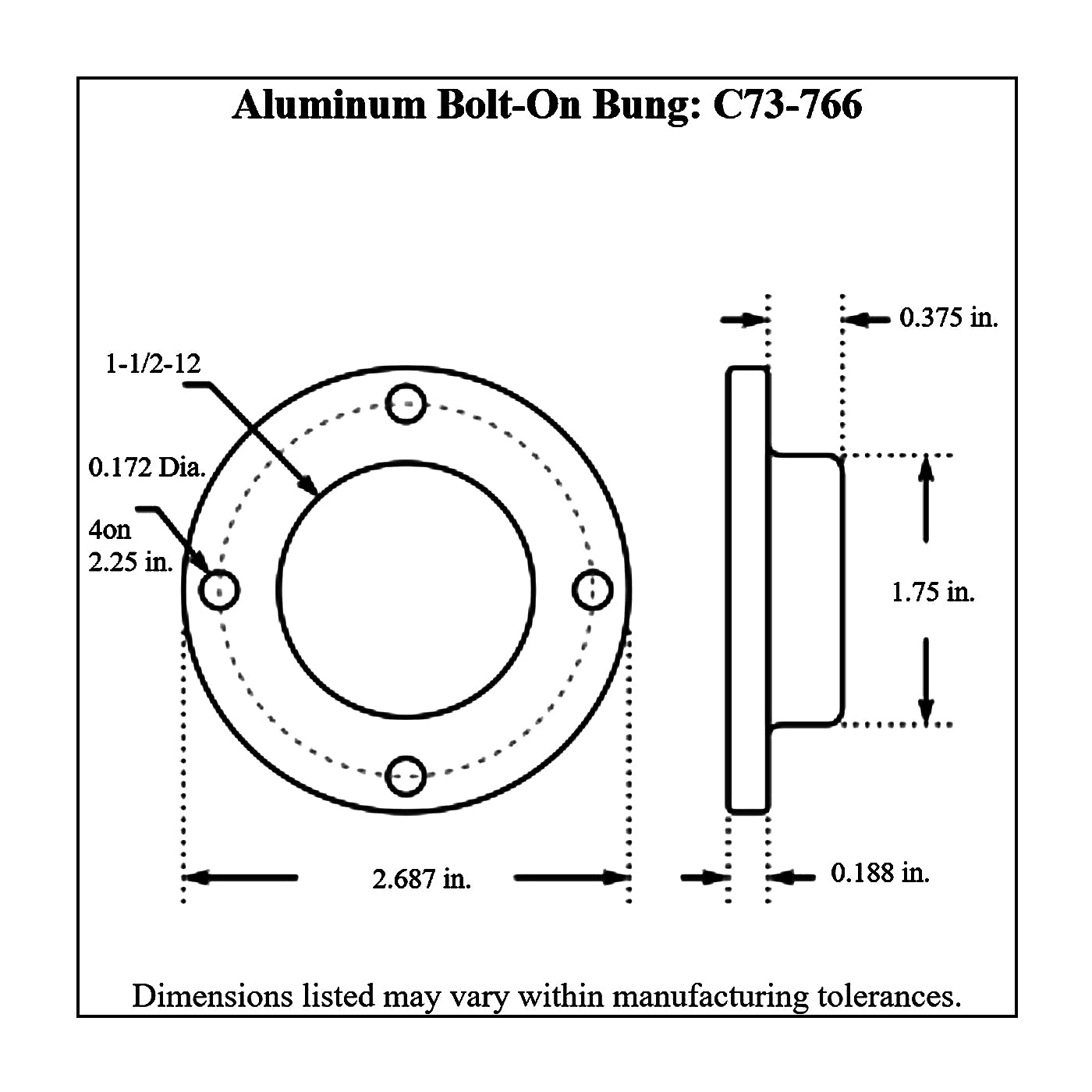

2 Inch Aluminum Bolt-On Bung
1-1/2-12 Straight Thread
4 on 2.25 in. Bolt Circle
9/16 in. Bung Height
(Replacement base O-Ring is C73-768)

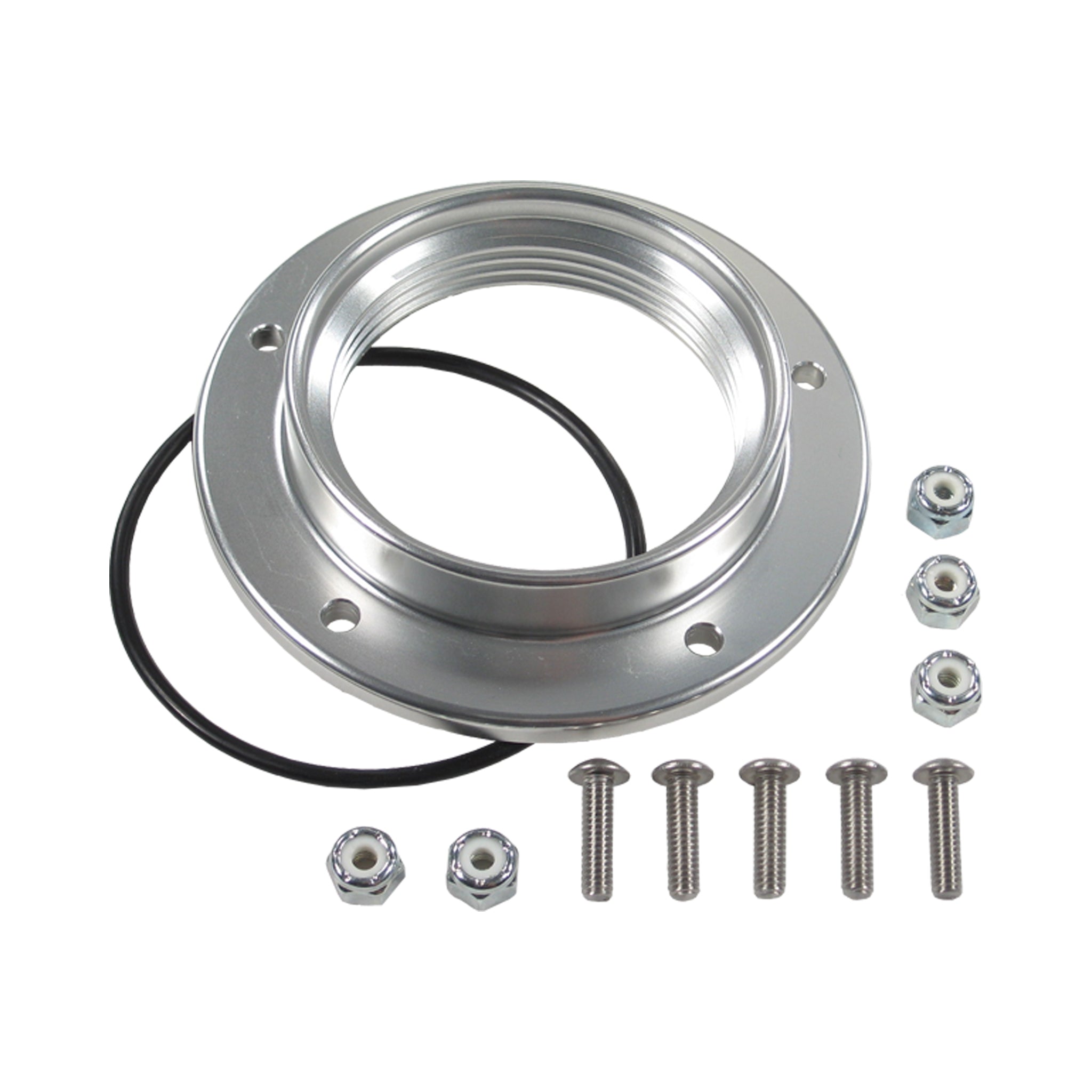

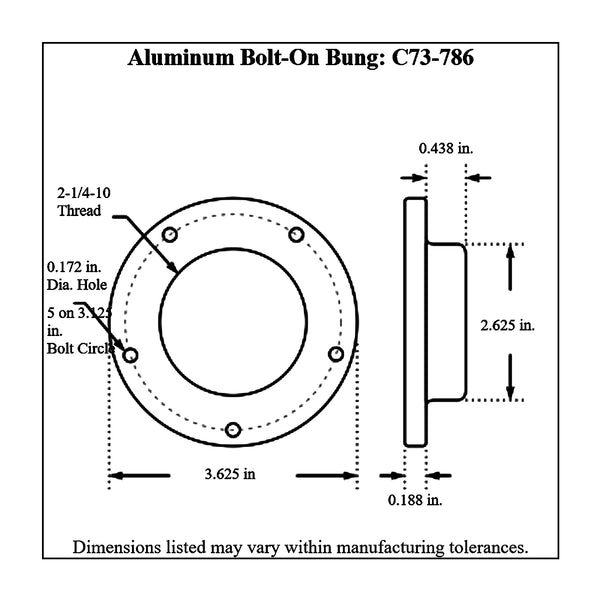

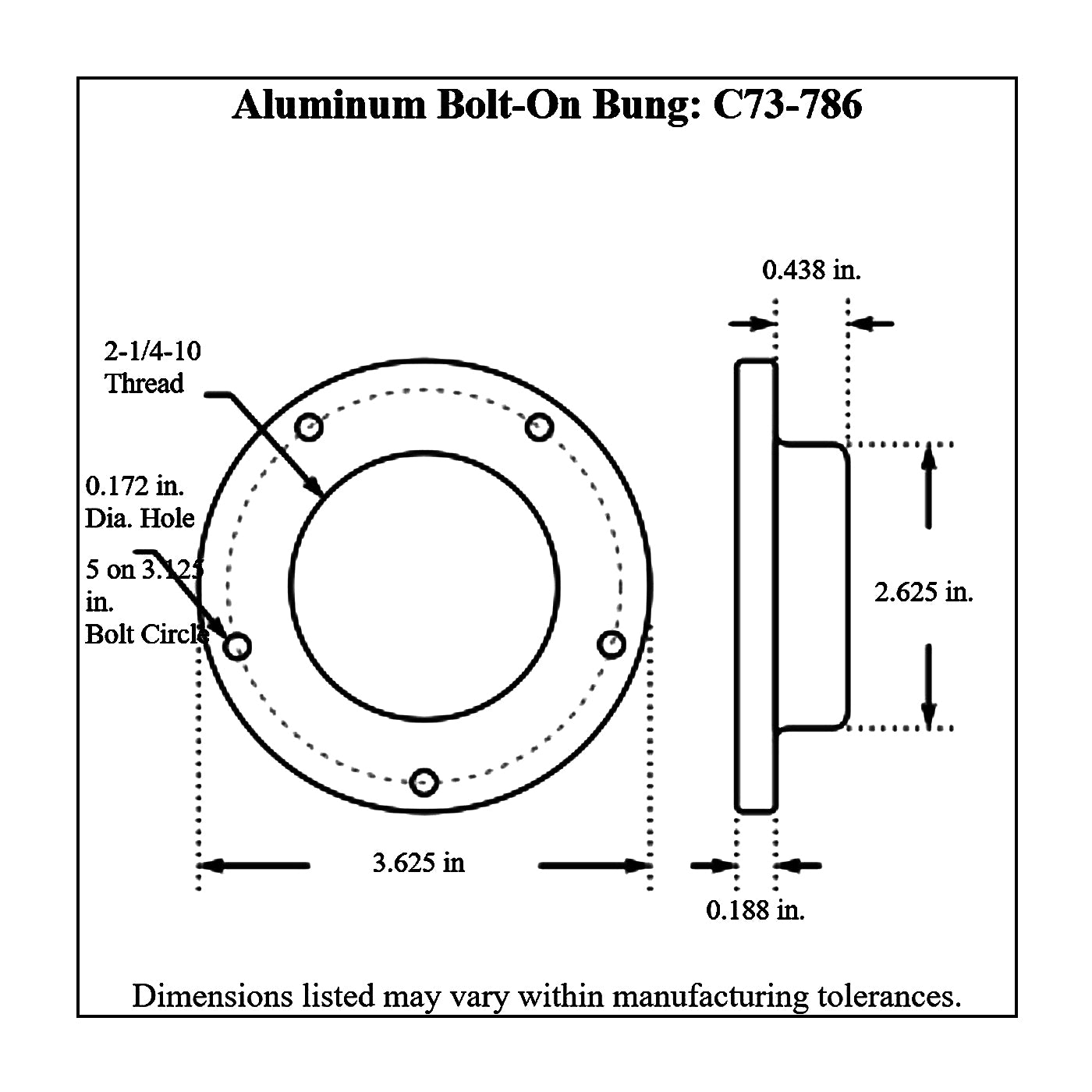

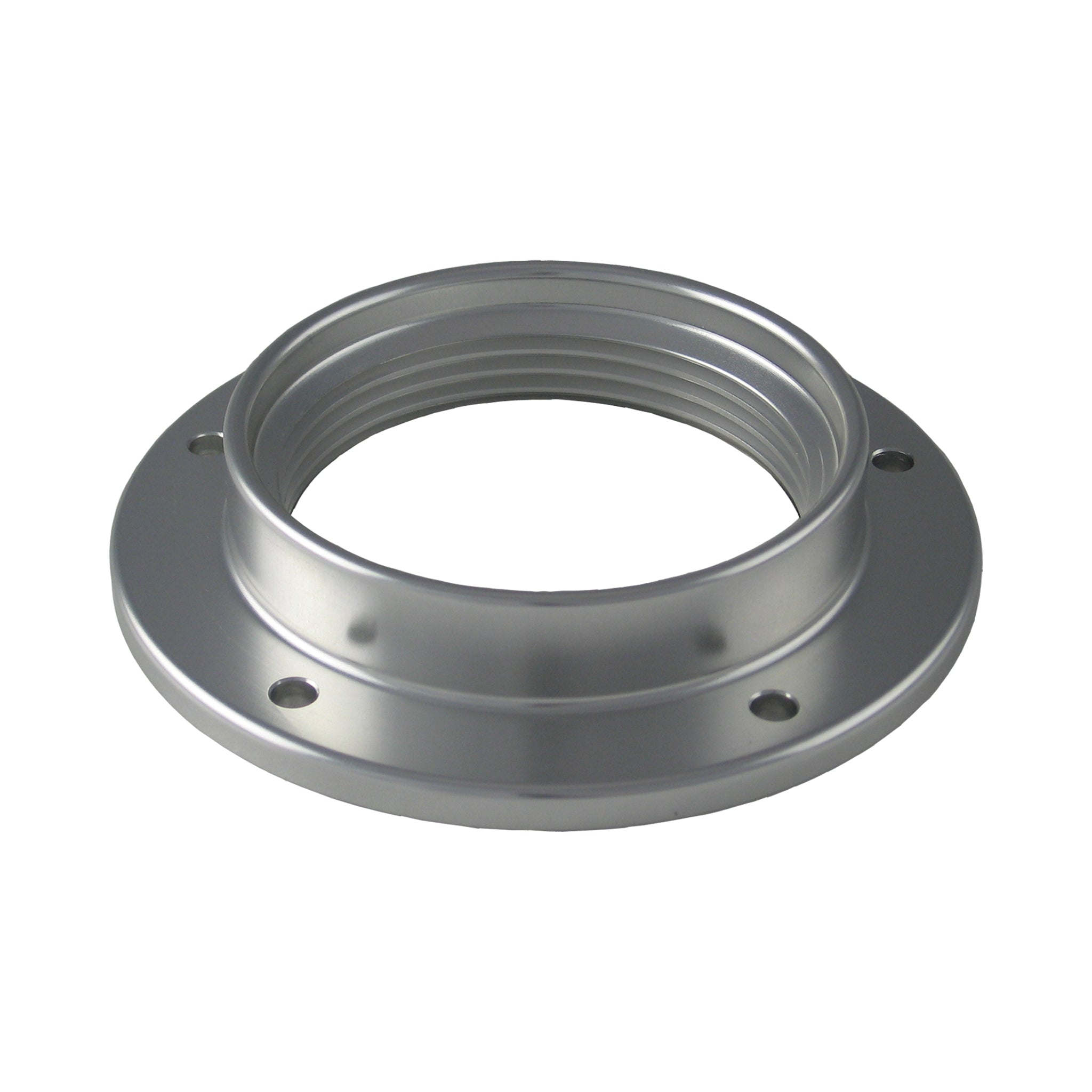

2-3/4 Inch Aluminum Bolt-On Bung
2-1/4-10 Straight Thread
5 on 3.125 in. Bolt Circle
11/16 in. Bung Height
(Replacement base O-Ring is C73-789)
Bolt-On Bung Overview
There are many very useful applications; ideal for composites when welding isn't an option and thin gauge materials that are too difficult to weld, or any installation that already has a sensitive protective finish applied. These are also a favorite of engine builders for filling oil in valve covers.

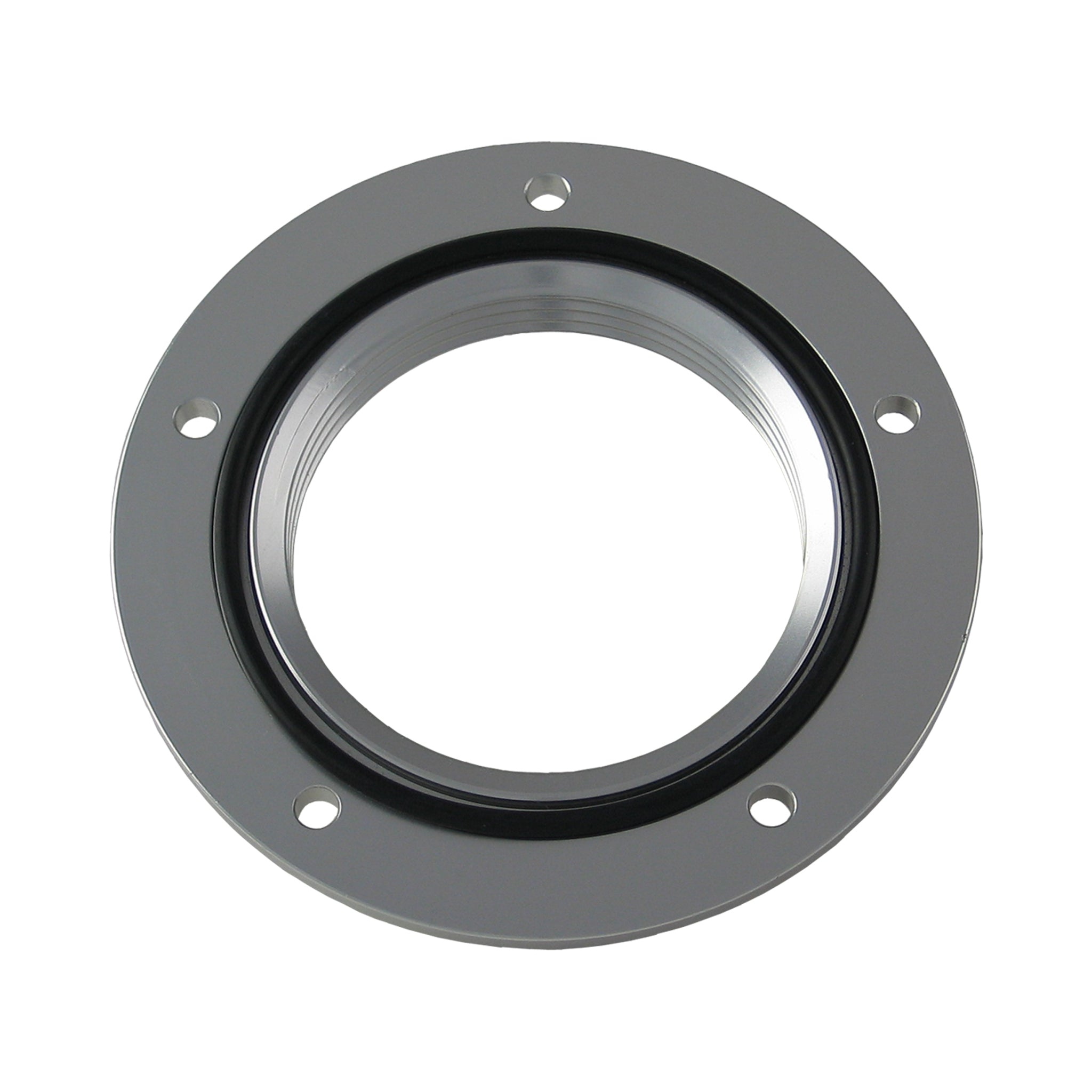

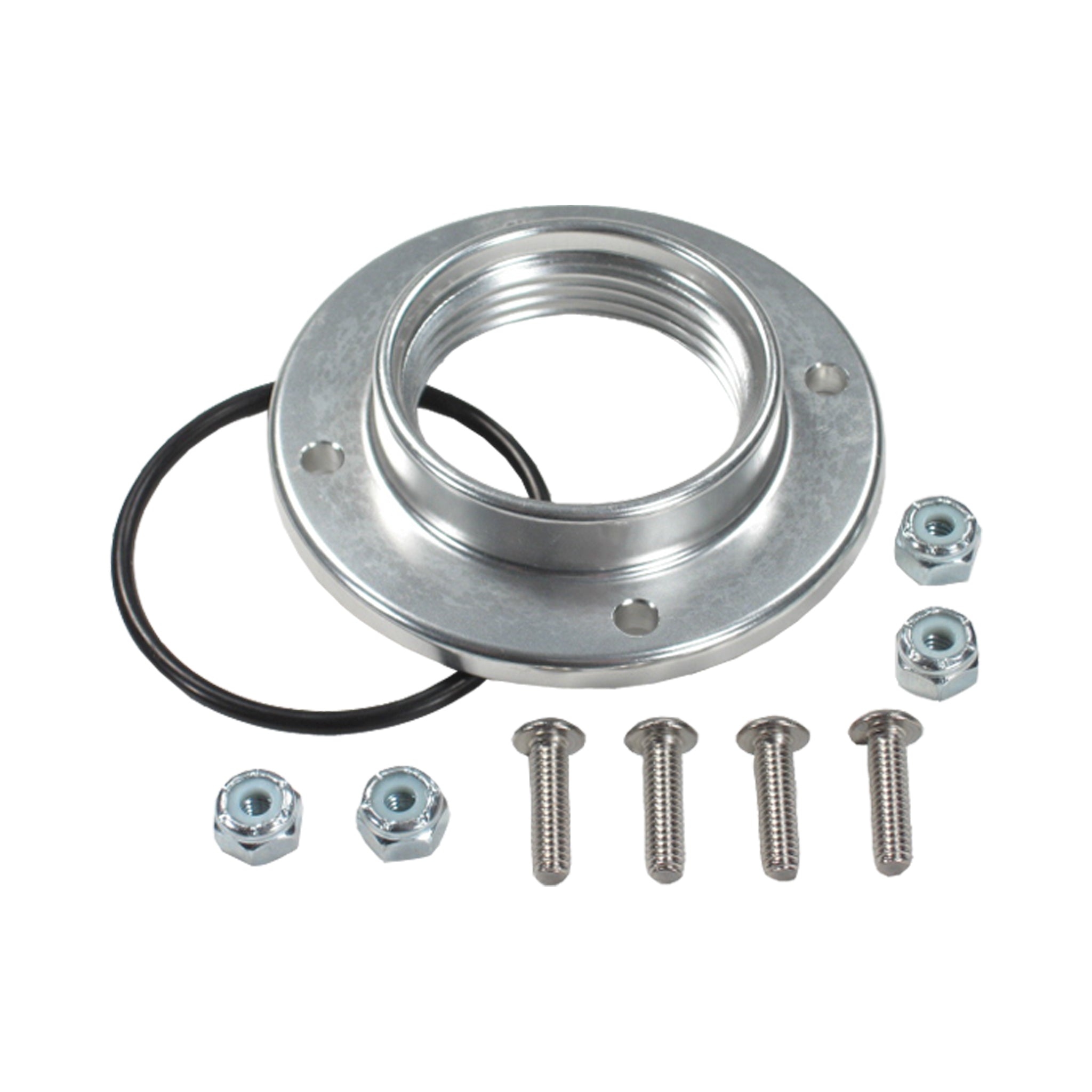

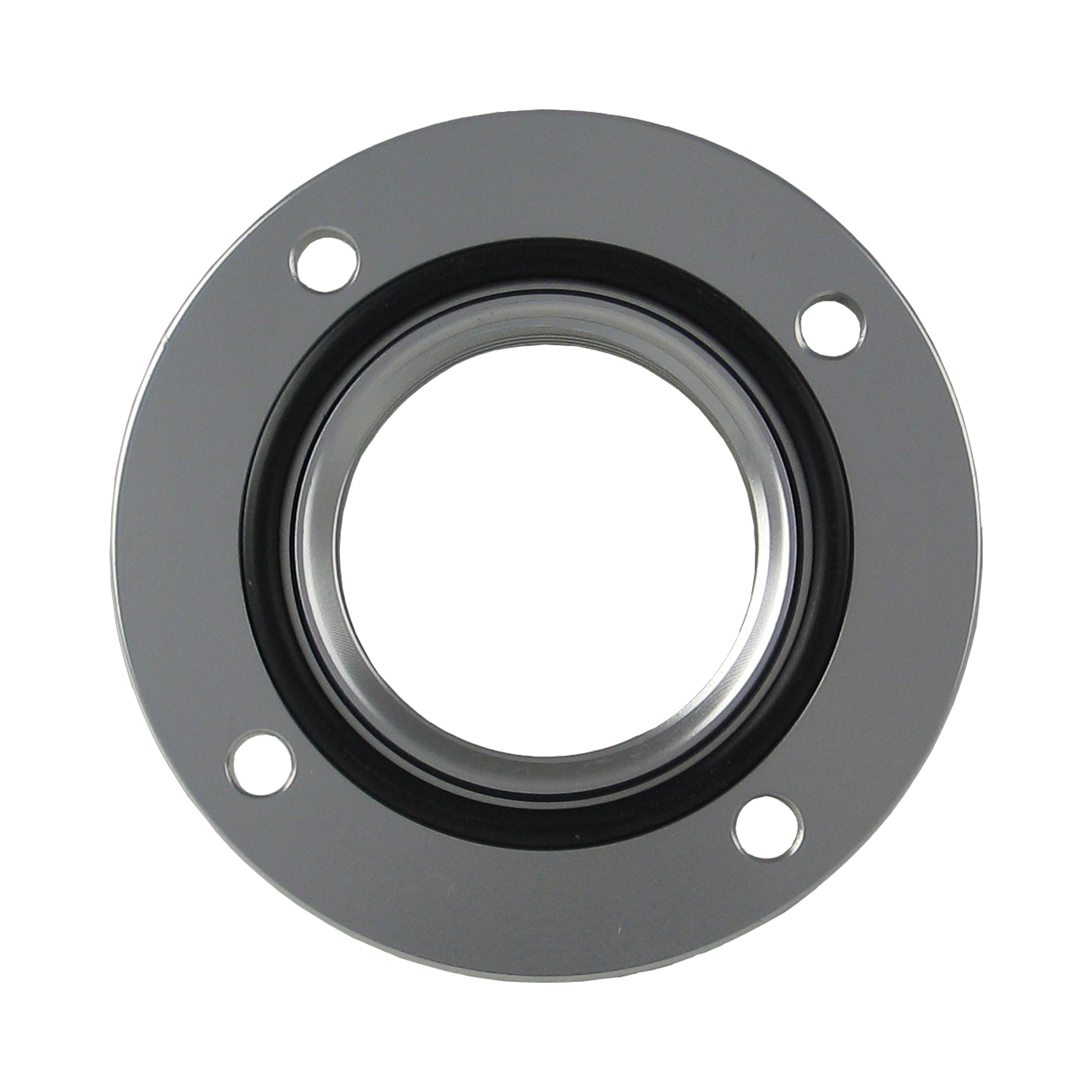

The Pro-Werks Bolt-on filler cap bungs require no welding; this produces a very clean finished installation every time. The base of the Silver anodized aluminum bung is machined to accept the provided Buna O-ring for a positive seal, mounting hardware is included. Backed by The Chassis Shop's Satisfaction Guarantee.
Watch our Product Videos ⏵

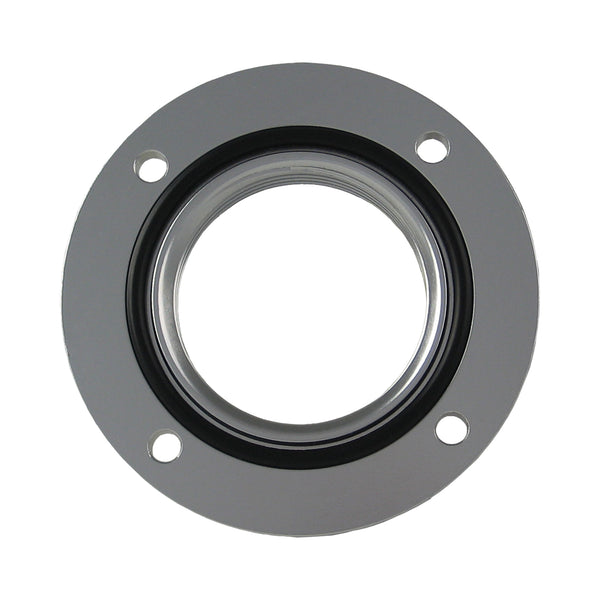

Leak-Proof O-Ring Seal

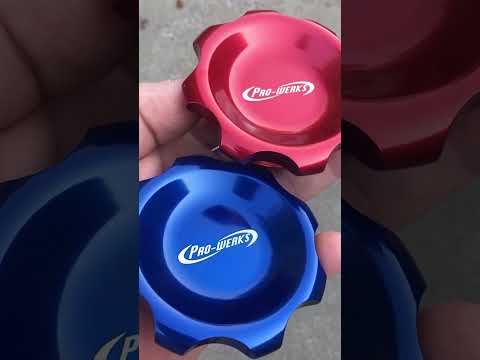

Great Filler Caps - Great Colors
To compliment the color coordination of your project, the caps are finished off in Pro-Werks Brilliance anodized colors in your choice of Black, Red, Blue, or beautifully Micro-Polished aluminum – the Pro-werks Jewelry Quality finishes are unmatched and impeccable!

The Right Size Fill Cap Matters
Easy Turn Fill Caps come in many sizes and are packaged as complete assemblies with your choice of one of the many versatile mounting options, or each component is also available separately.

Proudly Made in the USA
Both the cap and bung are precision CNC machined light weight billet aluminum, right here in the USA.
Be sure to check out the entire line up - Billet aluminum Easy Turn Fill Caps are a Pro-werks specialty.
You can always count on Pro-Werks to do it right!

Customer Comments:
"I use your bolt on caps and bungs on my carbon fiber Cummins common rail valve covers. Love the quality. Thank you."
– Randy Davis, Owner of OldSkoolFab, Inc.
"I upgraded my fuel cell to an Easy Turn fill cap assembly. It wasn't long until all my friends did the same. Great product!"
– As shared with us at the PRI Show
Questions and Answers
How much do I need to tighten my fill cap?
What should I use to lubricate the Buna O-ring?
Is Buna rubber compatible with my fluid?
