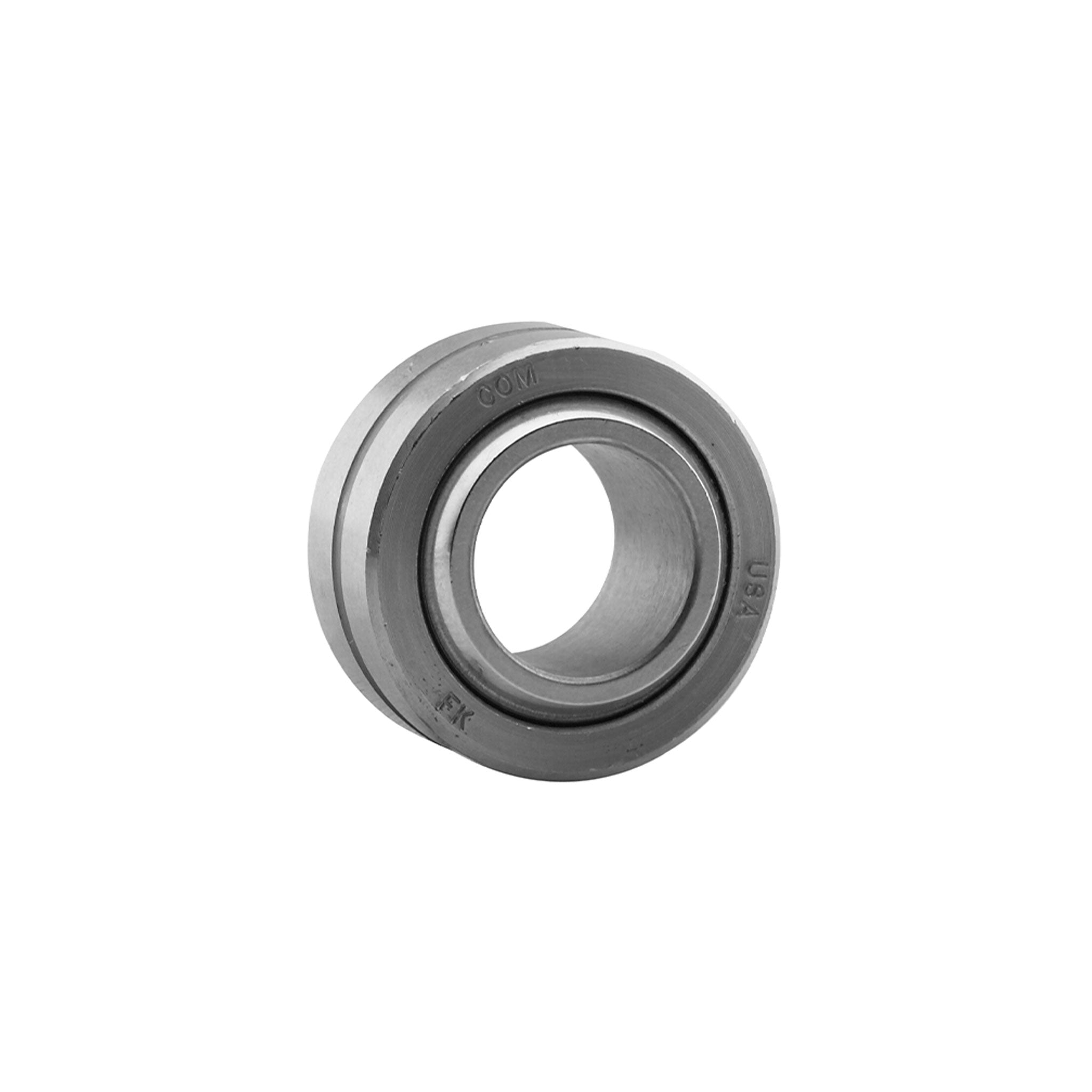

FK Bearing Rod End Insert

Sale price $6.99 USD
Part # COM6-FK
Select Size
Select Teflon Liner Option

  • 100% Satisfaction Guarantee
  • Live Expert Tech Support
  • Free U.S. Shipping Available
  • 30-Day Money-Back Guarantee
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks Chromoly Uni-Ball Weld Cup for Rod End Insert, 4130N

Pro-werks Rod End Safety Washers, Zinc Plated

Pro-werks 3/8 Inch Hole, 3/16 Inch Thick, 7/8 Inch Hole Height, Mild Steel Flat Weld Tab

Uni-Ball Rod End Inserts

Perfect for shock end bearings and components that don't need adjust-ability.

Available in either standard ball and race construction, or with PTFE liners. This selection of FK Bearing spherical bearings is the answer for fabricated components that don't require adjust ability. A few of the common uses include rod end inserts for uni-ball cups, and swivel joints for eye type performance shocks.

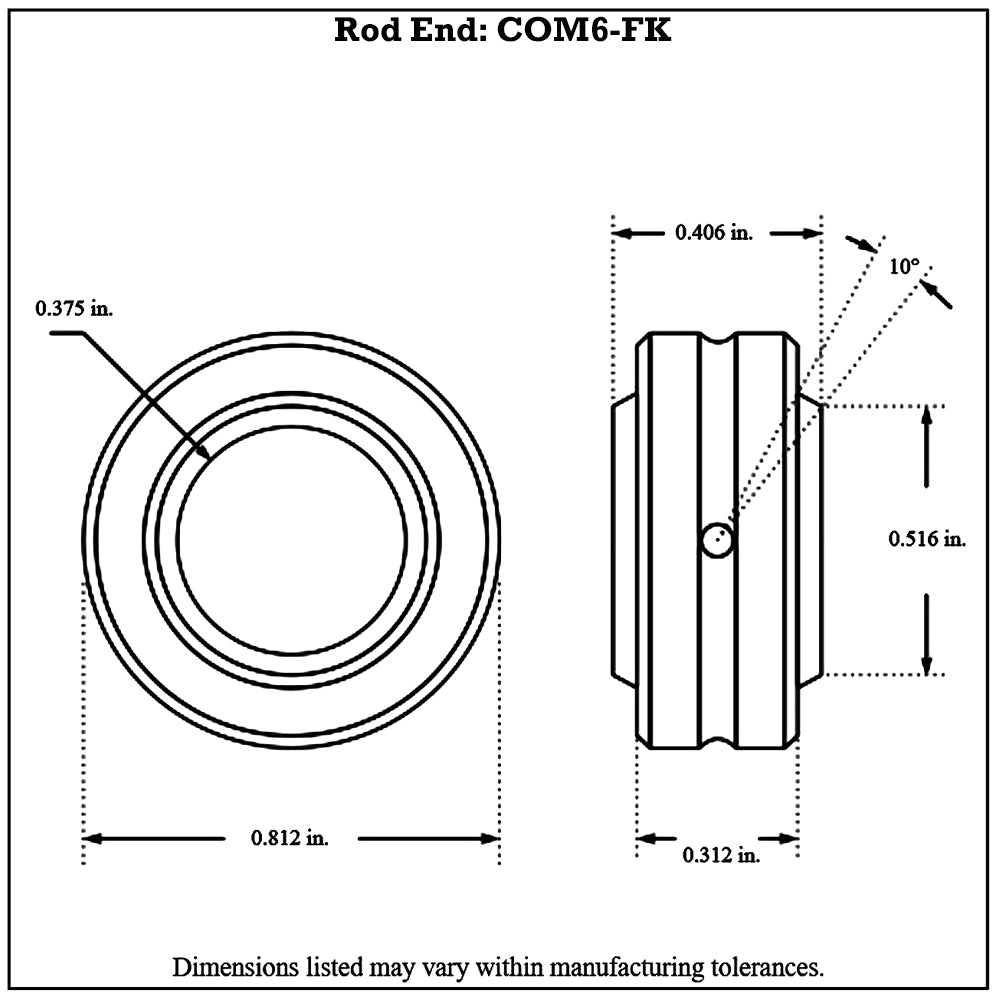

Part Number and Specifications

COM6-FK/COM6-T-FK
Degree of Misalignment 10°
Radial Load Capacity (lbs) 8,400

COM8-FK/COM8-T-FK
Degree of Misalignment 9.5°
Radial Load Capacity (lbs) 13,250

COM10-FK/COM10-T-FK
Degree of Misalignment 8.5°
Radial Load Capacity (lbs) 21,280

COM12-FK/COM12-T-FK
Degree of Misalignment 9°
Radial Load Capacity (lbs) 31,920


Get Connected

Assortment of weld-in threaded tube ends, rod ends with snap rings, misalignment spacers, jam nuts, cup washers and weld-on tabs

Click this image to see all our related hardware and accessories commonly used for linkage fabrication.

Questions and Answers
Why should I choose a PTFE Liner?

A PTFE (Teflon) liner greatly increases dynamic wear characteristics and is recommended for applications like 4-links, ladder bars, and suspensions.

The special mil-spec PTFE fabric liner is bonded directly to the race—providing smooth, maintenance-free operation without needing any additional lubrication.

This PTFE lined option should not be confused with other rod end manufacturers' soft Nylon races.
