Made in the USA

Pro-werks Rear Aluminum Wing

Sale price $829.99 USD

*Ships for FREE*

Part # C42-136-AT-8
Select Width
Select Mount Tab Centerline
Select Tip Type

Please allow 8-12 weeks lead time. This product is finish assembled to order.

  • Satisfaction Guaranteed
  • Live Expert Tech Support
  • Secure Checkout
  • Free Shipping & Easy Returns
Spend $175 to get free shipping

Our Customers Also Bought

Pro-werks Front Canard Aluminum Wings

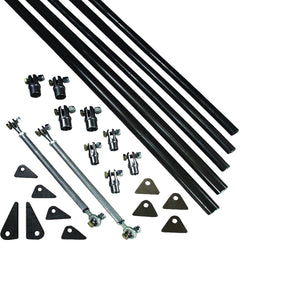

Pro-werks Chromoly Wing Strut Kit, 4130N, Unwelded

Pro-Werks rear wings are CNC machined from billet aluminum ribs using wind tunnel-proven NACA wing profiles with a 15" chord length. Internal aluminum reinforcement tubes provide additional strength and the aircraft-grade aluminum skin is 0.032" thick. Available in 36"–48" wide, with choice of several tip styles.

Construction

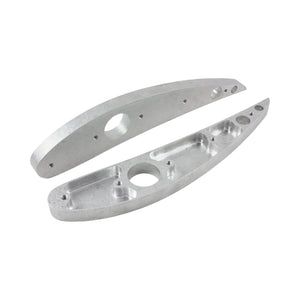

  • Ribs: CNC machined billet aluminum, NACA wing profile
  • Chord length: 15"
  • Skin: Aircraft-grade aluminum, 0.032" thick
  • Internal structure: Aluminum tubes for added strength
  • Tip plates: Removable and interchangeable

Mount Tab Specifications

  • Tab thickness: 3/16"
  • Front hole diameter: 3/8"
  • Rear hole diameter: 5/16"
  • Hole spacing: 5-7/8"

Configuration Options

  • Span sizes: 36", 40", 44", 48"
  • Mount Centers: 8", 15", 17-1/4" &18"
  • Tip styles: A, B, C, D, E, or F profile (equal aerodynamic performance)

Notes

  • Ribs are not available separately
  • Custom built wings available as special order

Pro-Werks rear aluminum wing aerodynamic data chart – NACA profile downforce specifications

Rear Wing Mounting Instructions (PDF)

Customer Comments

"I chose the Pro-Werks wing for a number of reasons: infinite adjustability, high-quality construction and hard data on angle of attack versus pounds of down-force at known speeds."

"From day one the jet truck was extremely stable. It had no 'lifting' of the rear end which is so common with jet trucks. It's no BS...it works!"

– Dave Modder
Owner/Driver of The Dragon's Fyre Jet Truck
